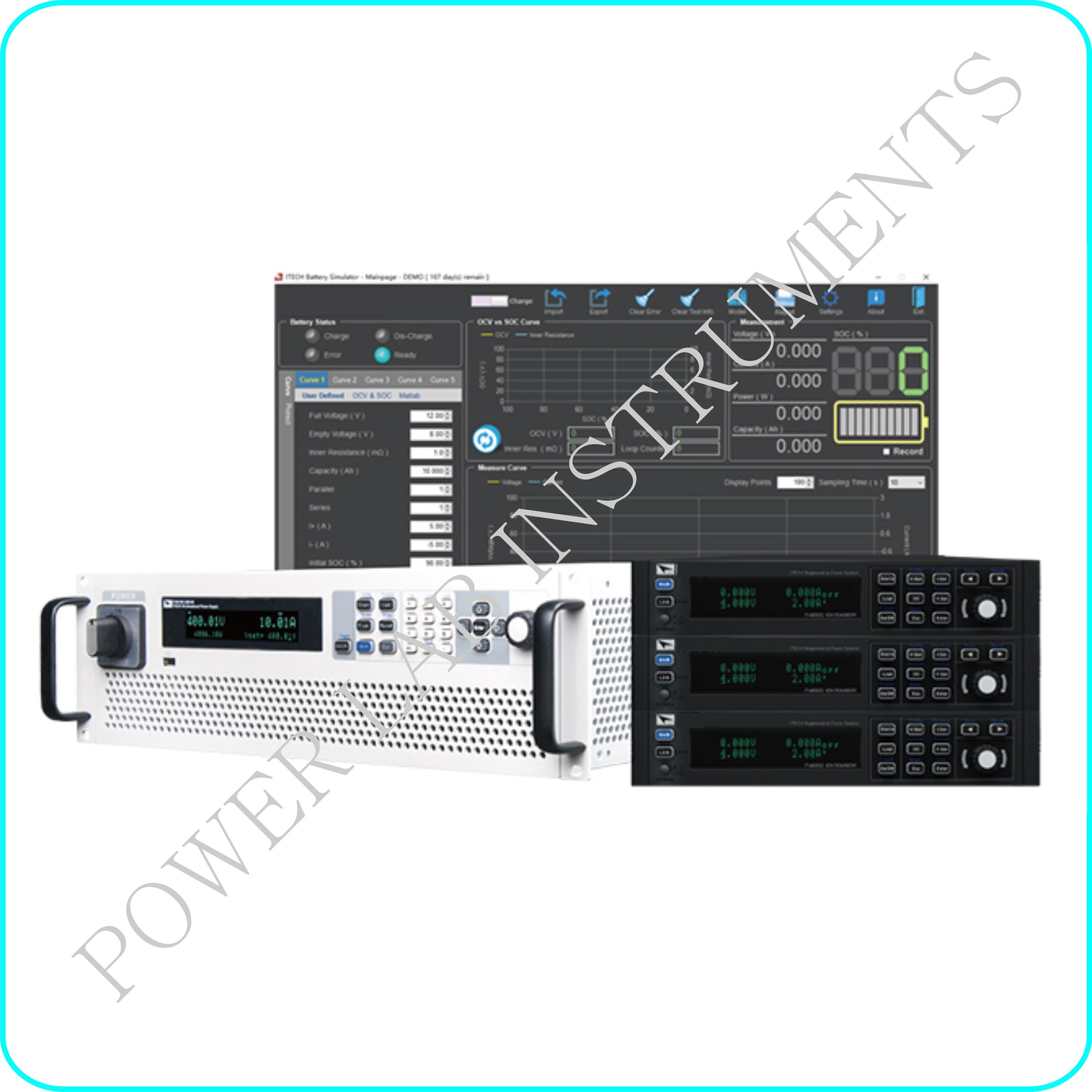

Description
Set up consists of
- Bi directional Programmable power supply ( Act as source or Load)
- Battery simulation software
- Optional : Fuel cell simulation software / Solar PV simulation software
Bi directional Programmable power supply ( Act as source or Load)
- Available power rating 2kw to 100KW, (expandable by paralleling multiple unit)
- Voltage output range: 0 to 2250V (based on model selection)
- Current output range: 0 to 2040A (based on model selection)
- High regenerative efficiency up to 95%
- Standard Built-in USB/CAN/LAN/digital IO interface, optional GPIB/analog & RS232
- Full protections: support OVP, ±OCP, ±OPP, OTP, power down protection, anti-islanding protection
- Support CC/CV priority setting, different loop speed can be set
- could be used as battery cycler and support various battery charging and discharging modes, such as CC/CV/CP
Built-in function generator, support arbitrary-waveform generating - Could be used as PV simulator, simulating the PV curves(with optional software)
- Could be used as battery simulator(with optional Software)
- Could be used as Fuel cell simulator(with optional Software)
- Support multiple working modes, rising and falling time can be adjustable.
- Support Datalog via USB disk and the shortest sample interval is 10us
- Strong dynamic driving profile simulation function, up to 10,000,000 points
Battery simulation software
- Support multi-channel battery module status simulation
- Bidirectional regenerative battery simulator, regenerative efficiency up to 95%
- Seamless switching between battery charging and discharging mode
- Support user-defined battery characteristic curve import
- Support quick set up of battery characteristic curves by input common parameters
- Support .mat file import function
- BMS protocol self-defined function, realize CAN bus communication with the external control unit
- Built-in various battery types (include LeadAcid, Lion, LMO, LNMCO, LNMCO&LMO, LFP, LTO, NiMH)
- Battery protection parameter setting function
- Battery output initial state of charge setting function
- Ideal data report function
- Battery curve preview and real-time curve display function
- Flexible expansion by parallel for larger current/power simulation request
For More details Contact : shanmugam@powerlabinstruments.com
