Description

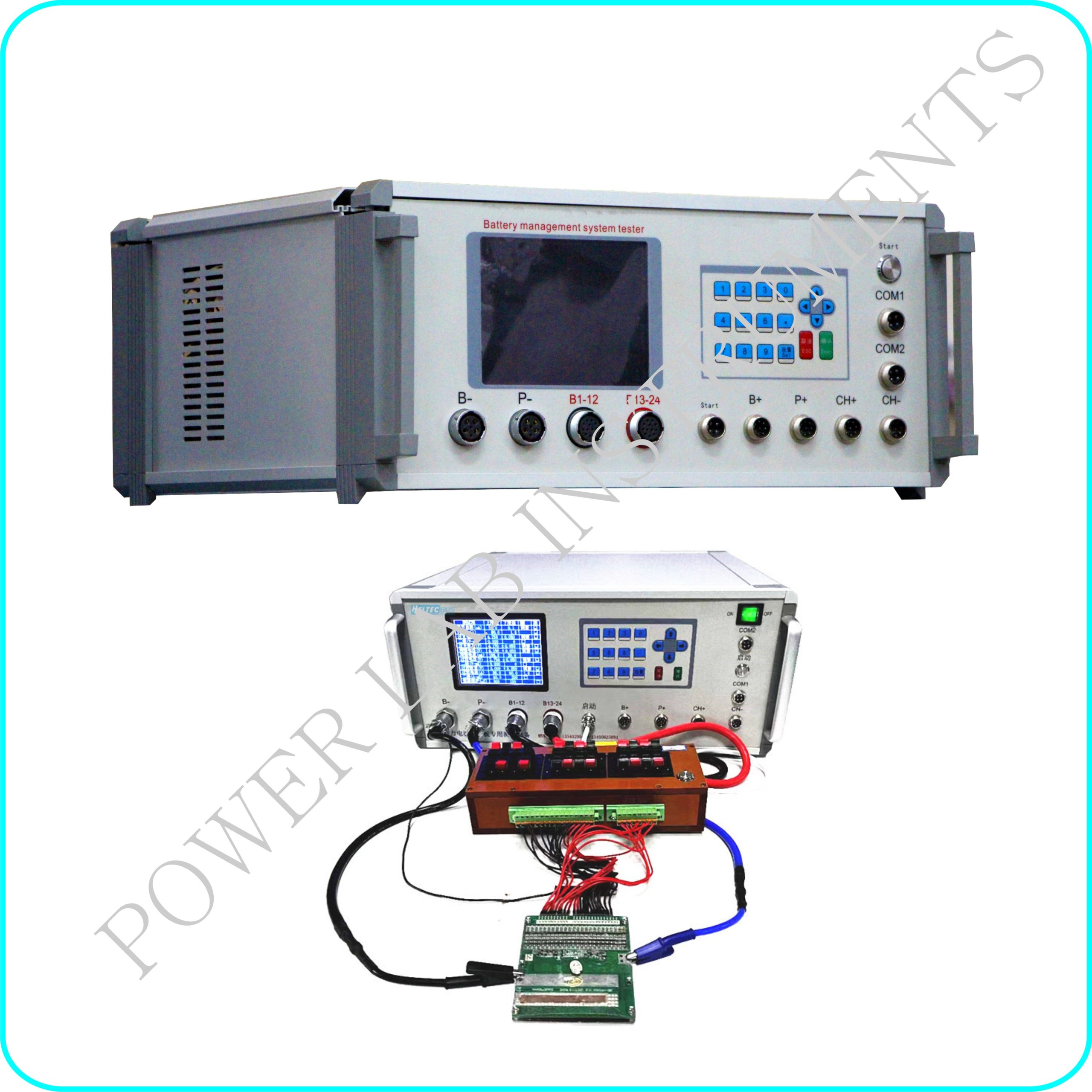

Mainly used to detect whether the functional indicators of the power battery protection board are in the parameter range in order to provide staff with a set of testing standards. It is mainly used to test the power battery protection board of the protection board manufacturer and the power battery manufacturer.
- Type BMS test support -B+ , P+ , C+ , B-, P-, C-
- High current module: the current level is 120A, current accuracy 0.1A.
- Voltage module: voltage range 0.5-5V, programmable output 0.5-5V, voltage accuracy 5mV.
- Short circuit module: super capacitor, fully analog pack the battery voltage instantly short-circuits the protection board to accurately capture the short-circuit time and current
- Number of test strings 1-16 string
- The reference voltage Ternary lithium battery (3.8V), lithium iron phosphate (3.0V)
- Overcharge protection voltage 0.5-5V with Accuracy of ±5mV
- Over discharge protection voltage 0.5-5V with Accuracy of ±5mV
- Overcharge recovery voltage (Self-recovery) 0.5-5V with Accuracy of ±5mV
- Over discharge recovery voltage (Self-recovery) 0.5-5V with Accuracy of ±5mV
- Overcharge protection current 1-40A with Accuracy of ±0.1A
- Over discharge protection current 1-120A with Accuracy of ±0.1A
- Balanced opening voltage 0.5-5V with Accuracy of ±5mV
- Balance real-time current 0-1000mA with Accuracy of ±1mA
- Over current protection delay 0-15S with Accuracy ±1mS
- Overcharge protection delay 0-20S with Accuracy ±1mS
- Over-discharge protection delay 0-20S with Accuracy ±1mS
- Single cell self- consumption 0-500uA with Accuracy ±1uA
- Loop resistance 0-500mΩ with Accuracy ±1mΩ
- Short circuit protection (6 strings or more) 0-9999us with Accuracy ±1uS
