Description

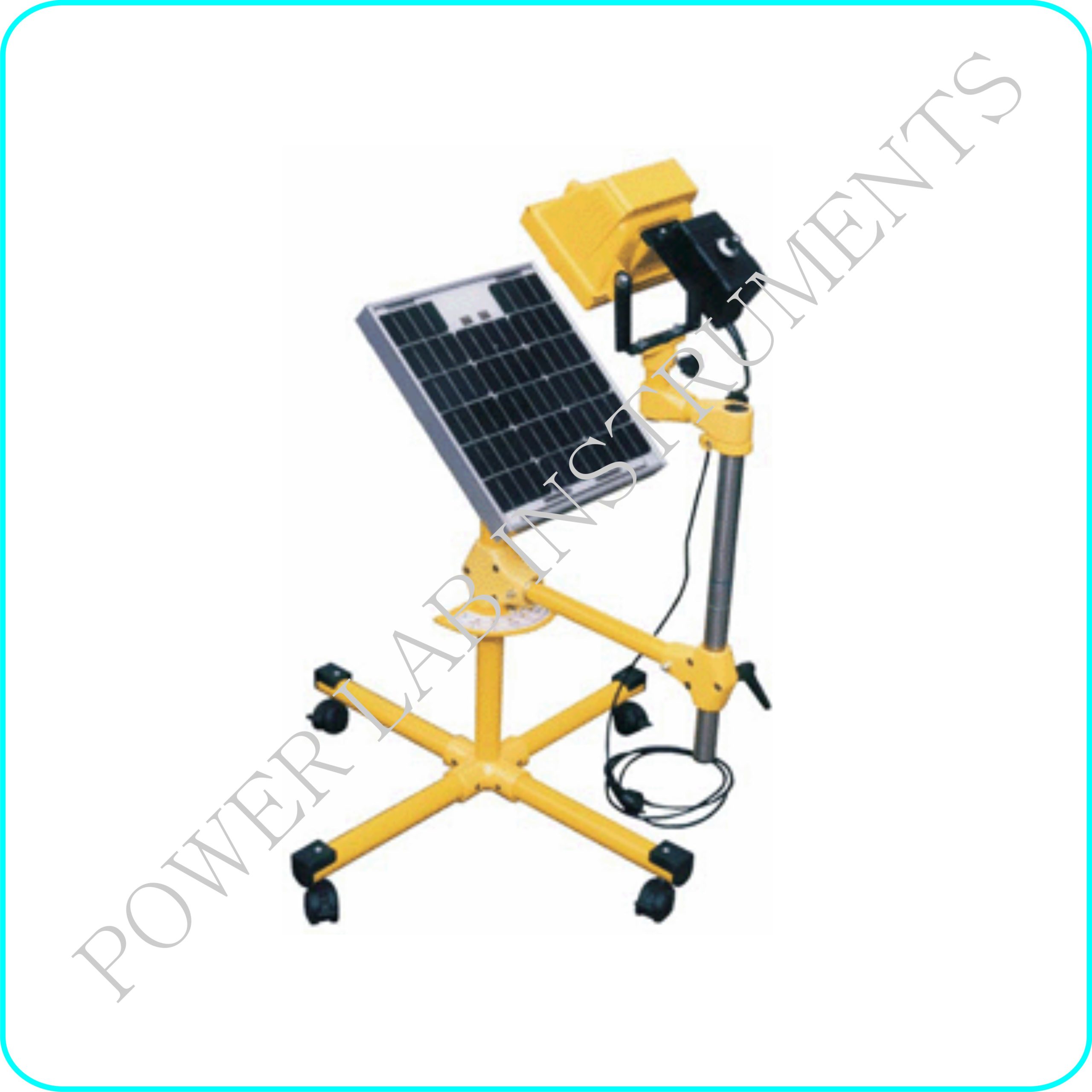

This set up is designed to study the solar cell output voltage characteristics against light. The system works as a live demonstration unit of solar cells in terms of its concepts (converting sunlight directly into electrical energy) and applications. This set up consists of
- Solar cell with light source
- Meter set up
- One number of solar cell panel with below specifications is provided
-
- 6V, 10W /Make USL
-
- Solar Panel is fixed with aluminum stand with position adjustment facility ( as per diagram)
- One number of Light source with light intensity adjustment facility to simulate sun light
- Potentiometer is provided to adjust the light intensity
- Solar panel output is terminated by banana connectors for external meter connections
Meter set up
- One number of digital voltmeter and ammeter are provided to measure the voltage and current respectively, during various directions & various light intensity
- One number of load resistor is provided
- Optional :One number of digital Lux meter is provided for light intensity measurement
