Description
Specifications

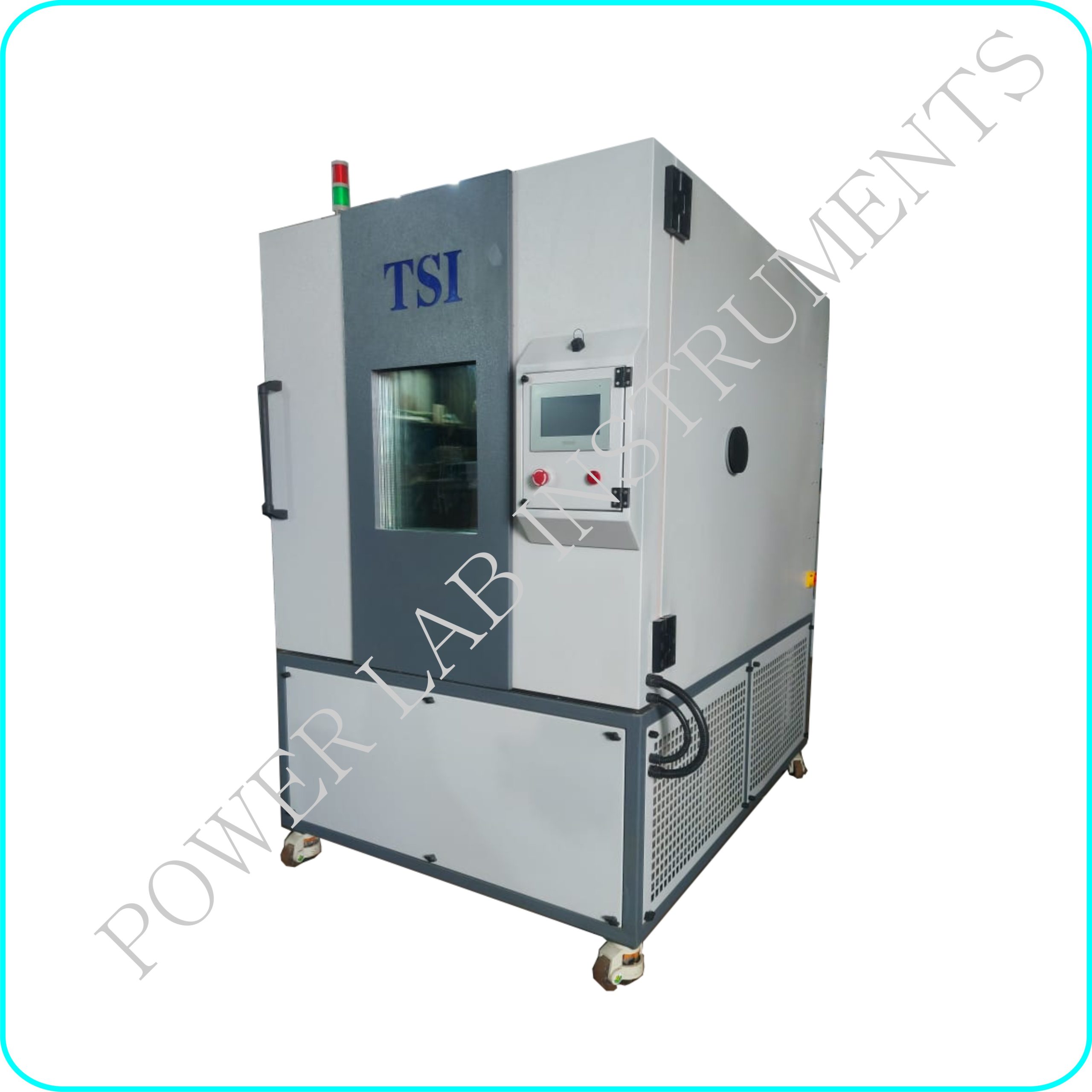

Model Vertical, floor model
Inner Size in mm 1000 x 1000 x 700mm
Capacity 700 Liters
Temperature Range +20°C to +80°C ( – Degree will be optional cost)
Controller GIC make microprocessor based digital PID temperature controller cum indicator will be provided.
Resolution 0.1°C
Sensor RTD, PT100, class-A sensor will be provided to monitor the temperature.
Controlling Accuracy ±1°C
Load 100 Kg’s maximum
Interior 1.2mm (18 SWG) thick SS304 with matt finishing will be the inner layer.
Exterior 1.2mm (18 SWG) thick MS with powder coated will be the outer layer.
Insulation 100mm thickness high density glass wool insulation will be provided.
Door Single door, double walled insulated & interior lined with SS304,silicon gaskets for leak proof, lock, handle & heavy-duty hinges for door.
Uniformity Heavy duty axial fans will be provided for forced air circulation to maintain uniform conditions inside the chamber within permissible limit.
Air Heaters SS tubular heaters with fins will be provided
Compressor Hermetically sealed single stage refrigeration system with Emerson make compressor will be provided for Cooling
Condenser & Evaporator Air cooled type copper tubes & fins will be provided
Refrigeration Features
-
-
-
-
- Refrigerant-CFC Free (ECO friendly) will be used.
- Drier for compressor safety will be given.
- Overload cut off relay for compressor safety.
- Efficient oil return managing system for protection of compressor
- The additional isolation suspension channel with antivibration pads are provided to reduce the vibration & noise level
- High speed axial fan will be provided for better condensation.
-
-
-
Electrical Features
-
-
-
-
-
- Schneider make MCB’s & contactors will be provided for motor & other loads
- L&T make main switch will be provided.
- Emergency cut-off switch will be provided
- SSR will be using for Heater efficiency
- Door interlocking switch will be provided
- Door open alarm will be provided
- Fire and temperature retardant wires will be using
- Ceramic cables will be provided for heaters.
- High temperature safety cut off through thermostat.
- Air circulating fan will control by door locking switch.
- Power supply:230v, single phase,50Hz
-
-
-
-
