Description

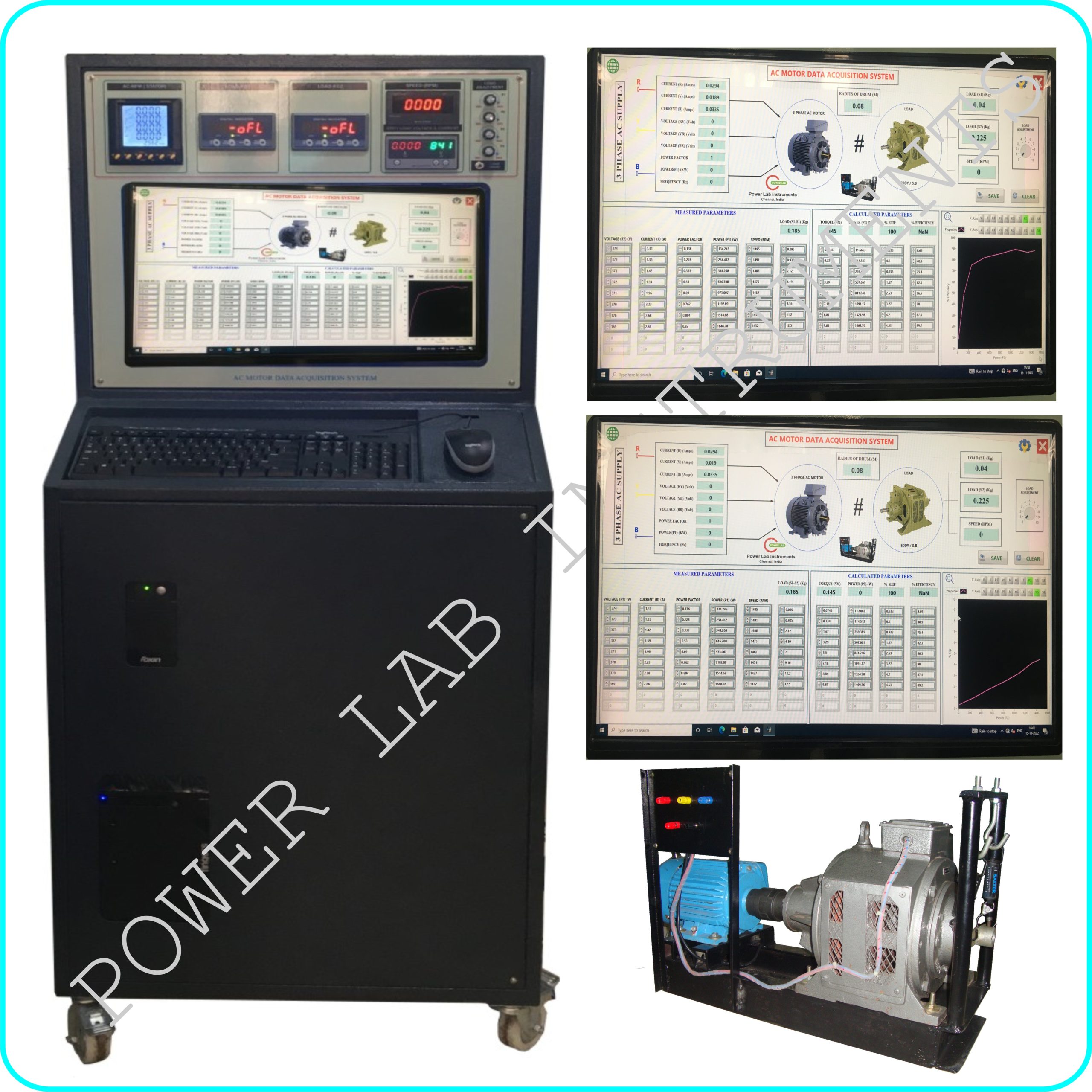

This set up can be used to monitor the AC motor electrical and mechanical parameters like current , Voltage , Speed, Power etc using DAS & Computer. This set up can be used to plot Graph between the electrical & calculated parameters. It consists of
- 2 -7 HP AC Induction motor coupled with Eddy current Load set up
- Control Panel with meters & provision to fix Computer
- Lab view based application software to display & plot Motor parameters
For AC Parameters-Measurements
- 3 phase AC Current -0-10A/20A AC
- 3 Phase Line Voltage-0-600VAC
- 3 Phase Power in KW
- Power Factor
For Mechanical Parameters Measurements
- Motor speed in RPM
- Load in Kg
Calculated Parameters
- Torque in Kg/CM
- Efficiency in %
- Slip in %
- Output power in watts
- Etc
PC Software
PC based windows software ( Labview based) is provided to measure & Calculate the above parameters in computer and plotting of Graph between various parameters like N vs T , T vs I , T vs P.F , N vs Effi etc
Custom specifications also possible
