Description

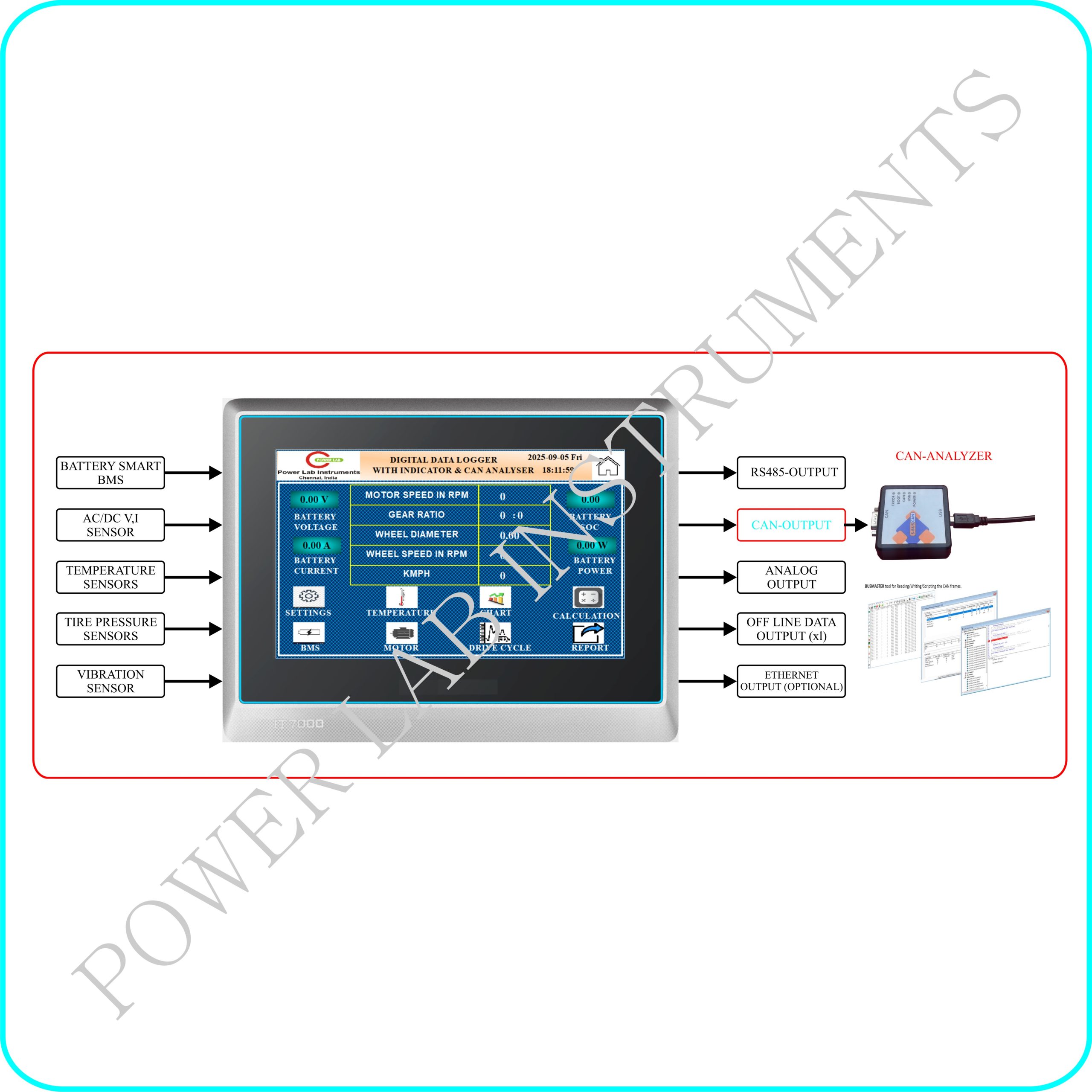

This advanced digital data logger is designed to acquire and monitor essential electrical and mechanical parameters of an Electric Vehicle (EV) setup. It includes a communication output via RS485 and CAN, allowing seamless integration with external systems for further development, such as AI-based control systems.
- Key Features:
- Display Unit : A 7-inch LED display with 800 × 480 resolution and 24-bit true color is provided. Real-time display of key parameters, including:
- Electrical Parameters -Battery SOC (State of Charge) ,Battery Voltage, Current, Power, Battery Capacity , Individual Cell Voltages (up to 19 cells), Motor , Current, and Power,
- Mechanical Parameters : Motor speed in RPM , Wheel speed in RPM and Vehicle Speed in KMPH
- Other Parameters : Battery internal Temperature , Vibration and Tire Pressure etc
-
- Drive Cycle Implementation: Supports user-defined drive cycles through profile data or images.
- Enables external mode speed control via the digital controller.
- Data Storage and Analysis
- Equipped with a USB port for offline data storage in .csv format.
- Enables convenient analysis using tools such as Excel or MATLAB.Other Features
- Communication Interface
- RS485 & CAN communication output is available for all key parameters, including:
- Battery Voltage, Current, SOC, Power, Temperature, Remaining Capacity, Individual Cell Voltages
- Motor Current, Speed, and Temperature,Vehicle Speed (KMPH), Wheel Speed
- Tyre Pressure , Vibration
- Facilitates integration with external systems for advanced analytics and control applications.
CAN BUS Analyzer
The CAN BUS Analyzer Tool is a simple to use CAN bus monitor which can be used to develop and debug a high speed CAN network. The tool supports CAN 2.0a, CAN 2.0b and a broad range of functions which allow it to be used across various market segments including automotive, industrial, medical and marine. The toolkit comes with all the hardware and software required to connect a CAN network to a PC. The Graphical User Interface makes it easy to quickly observe and interpret bus traffic.
- Real time CAN bus monitoring with time stamp accuracy of 1ms (Either Tx or Rx)
- Windows device driver library (DLL) support for custom application development.
- Support for Windows platform VC++, C# .NET based API exposure for seamless integration.
- Complete integration with GUI tool – BUS MASTER
- Supported on WINDOWS and LINUX OS.
