Description

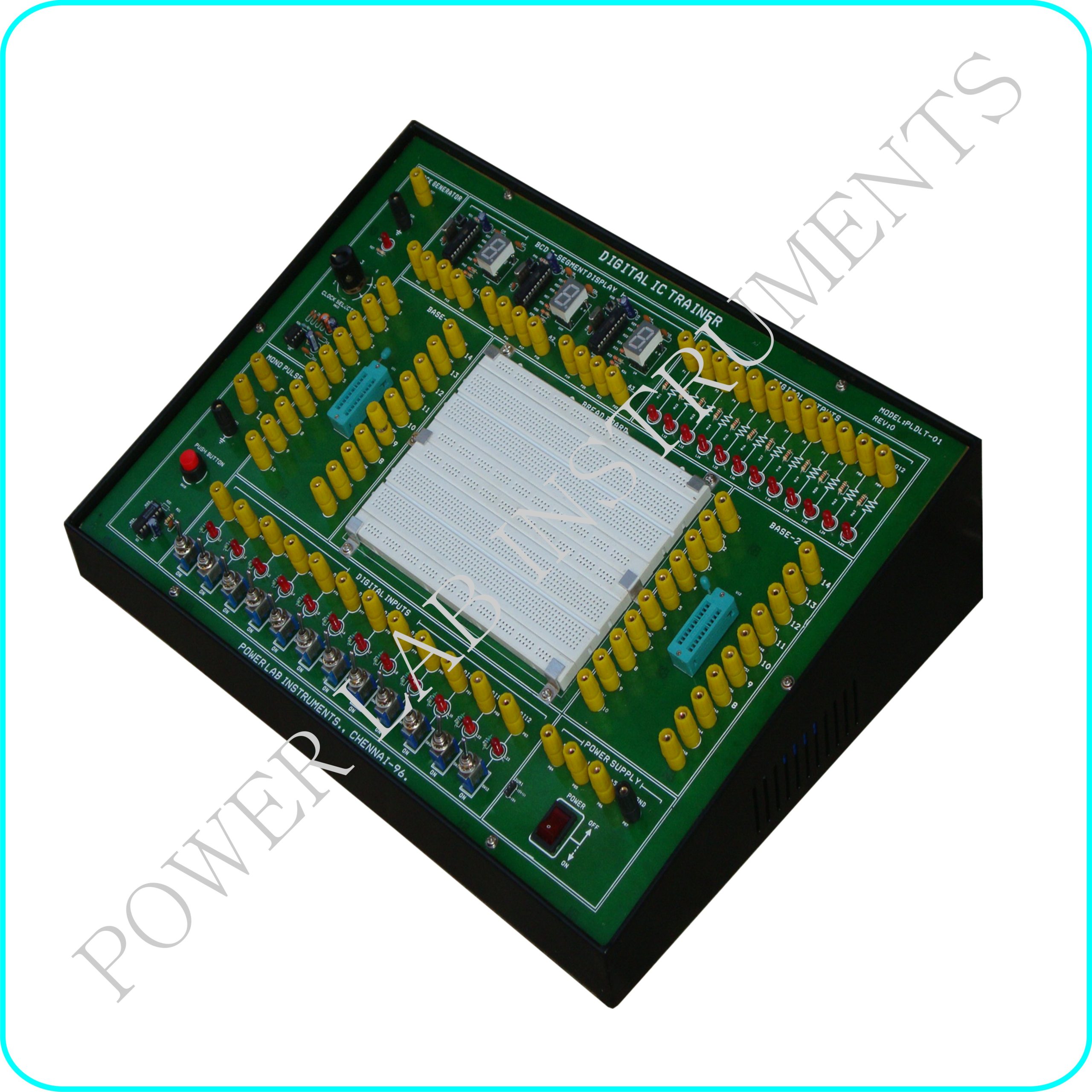

This PLDIT-01 Digital IC Trainers provide hands on practical experience on digital electronics at one place and save the time and money without compromising the standard. This Digital IC Trainers is designed to educate the students in understanding, design evaluate, test and modify the digital circuits in an easy manner
Specification
- 2 Numbers of Solderless Bread board is provided (840 tie points X 2 bread board , total 1680 tie points )
- 12 Logic input toggle switches are provided.
- 12 Logic output indicators LED display is provided.
- 2 numbers of 20 pin ZIF Sockets with all pins are terminated by spring type connector
- One push button is provided for Mono pulse.( both positive going & negative going pulse)
- Three number of 7 Segment Display with BCD TO 7 Segment decoder IC is provided
- IC based TTL Clock generation of 1 Hz, 10Hz, 100Hz, 1KHz, 100KHz, is provided with outputs are terminated on spring connector mounted on PCB
- +15VDC ,-15VDC & +5VDC Regulated power supply with Short circuit protection
- All are mounted on a nice MS Cabinet with bench top size with powder coated with good aesthetic.
- 230VAC Input with power card & fuse protection
- Power ON/OFF Switch with indication
- Accessories : Connecting wires (single stand wire of 1 coil & Instruction Manual)
