Description

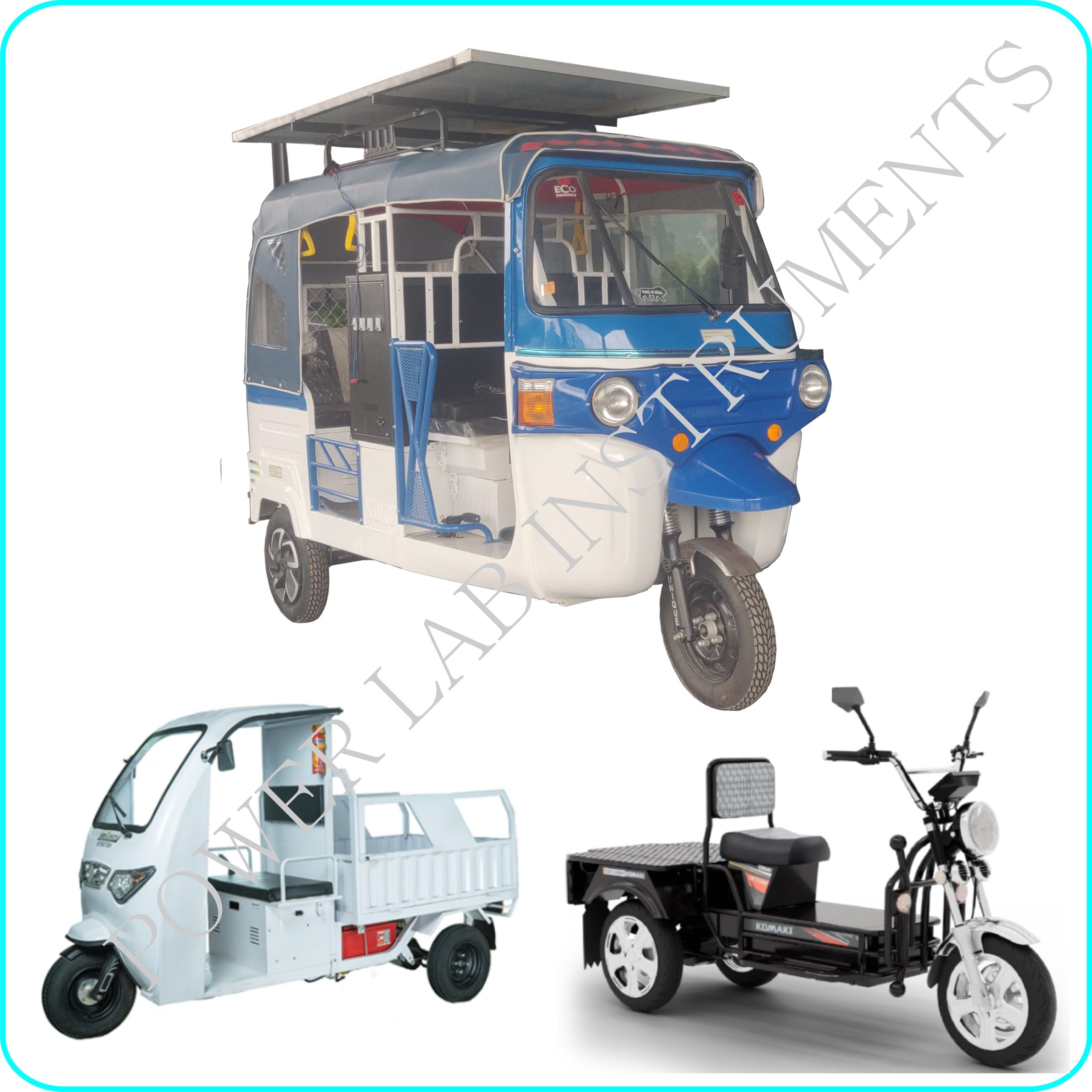

Three wheeler electric vehicle system consists of
Mid drive Motor & Drive
- One number of 60V/1.2KW, 3Ø PMSM Motor with controller
- (Optional) BLDC /Switched Reluctance Motor/Multi phae PMSM with controller – any one motor can fix & test the vehicle
- Suitable differential gear arrangements ( 10:1) to fix the above motors- any one
Battery & Charger
- One number of 60V/2.5KW Lithium ion battery with smart BMS
- Bluetooth connectivity with mobile app for BMS
- RS485/CAN Communications for BMS Output
- Suitable charger for battery charging purpose
- Charging time 4-5Hours
Vehicle Dimensions
- 3.5 feet (W) , 6 feet (L) +/-10% Variations
- Speed 30-35KMPH
- Millage range -30km Per charge
Digital indicator with RS485 Output
- PLC/Other type controller with 7 inch HMI to indicate -Motor speed in RPM , Vehicle KMPH , Battery current, Voltage & Energy etc
- Battery BMS o/p with RS485, Blue tooth output
- Tire pressure sensor with Display only
- Speed sensor with RS485,Vibration sensor interface with RS485
- Temperature sensor for battery charger
- Temperature sensor for Motor ,Temperature sensor for Drive,Temperature sensor for solar panel
Special Features
Provision to interface external PWM Controller ( dpsace /opal rt/RTGUI FPGA) & IGBT module for Motor control
Iot -Remote Monitoring Software
Solar Roof for Hybrid Energy System for Charging
- Solar Battery charger for lithium Battery
- Input from solar panel 72V , 300W
- Output – suitable for 48 or 60v lithium battery
- MOSFET based Charger ( PWM/MPPT) circuit
- All are mounted on a nice powder coated cabinet with MCB & ON/OFF switch
For More Details Contact ; shanmugam@powerlabinstruments.com
