Description

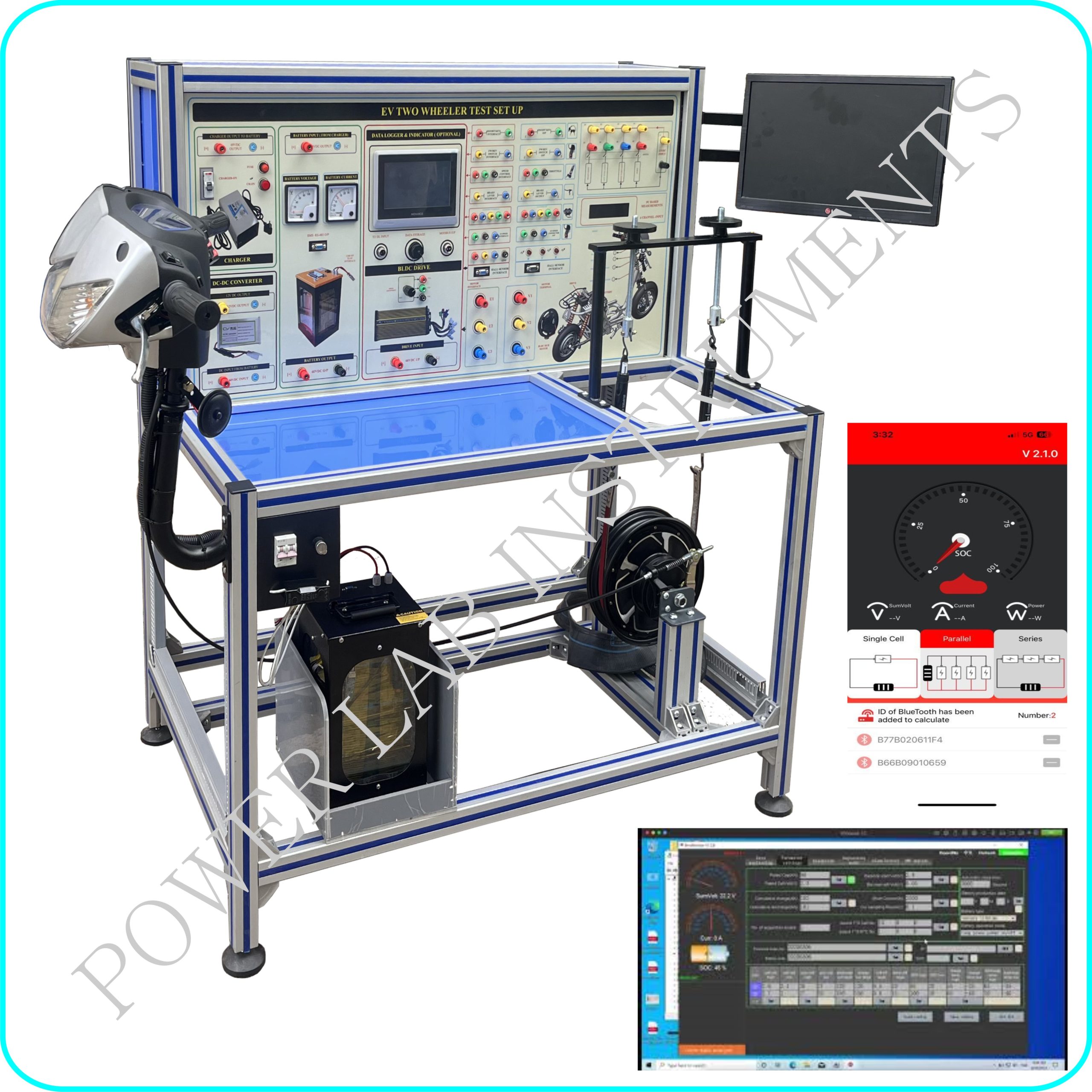

Set up designed to study the connection procedure and testing procedure of electric 2 wheeler set up using various components of electric vehicle like battery , BLDC Hub Motor , drive etc , Set up consists of
Motor
- Motor Type : BLDC Hub Motor
- RIM/HUB Size : 10Inch
- Voltage : 60V
- Motor Power : 1000W
- Maximum speed : 25-35KMPH
- Sensor : 3 Numbers of Hall sensor
- Brake : Disc brake
- Tire : Brand New
Controller : MOSFET based Controller/Input Voltage :48-60VDC/Maximum Current:30A
Battery : 60V, lithium ion battery -LPF /18ah/ With smart BMS with PC interface Software and Bluetooth-Mobile App software -optional features
Charger : MOSFET based Charger/ 170-250VAC Input/Output Voltage : 62V/Charging Current : 5A/Charging Time : 3-4 Hour /Features : Led’s for status indicator
Panel
- Aluminum Profile Panel with diagram Stickered front panel to fix the Above Motor , controller and Battery and also to fix the below mentioned components
- Handle with throttle for speed control
- F/R selection switch, Left /Right indicator switch with Lamp
- Head light switch with Lamp, Horn switch with buzzer
- Brake control lever,Digital LCD-indicator ,To indicate
- Speed in KM/H,Motor Speed in Rpm,Left indicator status
- Right indicator status, Head light Indicator status, ON/OFF Switch with Key
- DC-DC Converter for Light (60V TO 12V, 10A)
- Necessary Banana terminals provided for motor , Battery , Controller input and outputs terminations for external patching.
- Panel Meter for Battery voltage and Current
- Necessary terminations for controller control signal (like hall sensor , indicator, throttle) output and inputs for external patching.
- Necessary Fuse and MCB provided for battery, Motor
Features
- Provision / Facility to Interface with External IGBT Power Module and Controller set up (FPGA /MATLAB/DSPIC etc)- for Motor control and testing
- Spring balance load set up with dial indication facility for HUB Motor
- PC Software for BMS -Smart Battery
- Blue tooth Mobile app- connectivity for BMS -Smart Battery
For More details Contact : shanmugam@powerlabinstruments.com
Optional Features
- PC Software for BMS -Smart Battery
- Blue tooth Mobile app- connectivity for BMS -Smart Battery
- PC Based Measurement and Acquisition System for Motor, Battery Voltage and Current
measurement ( Refer spec 3.0a) - Digital Data Logger with Indicator for External Assessment and Analysis with CAN logger ( Refer spec 3.0b)
