Description

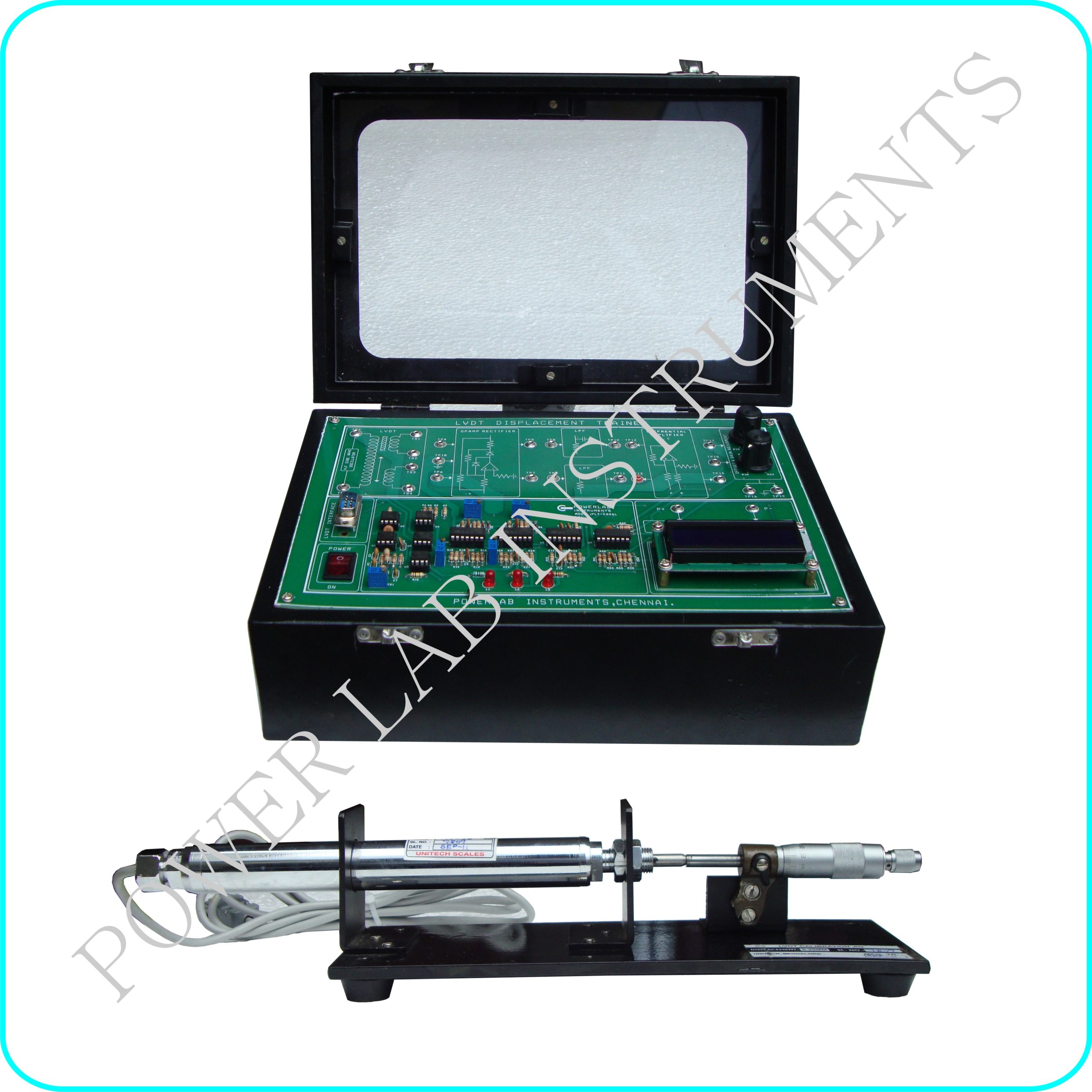

This trainer system is designed to study the working principle and Voltage displacement characteristics of LVDT. This set up is consists of
- One number of LVDT Set up with Linear scale for displacement measurements
- LVDT Specifications
-
- LVDT Sensor with micrometer Range : 0-25mm
- Displacement calibration Range: +/- 10mm
- Output Voltage : 0-2V
-
- 9 pin Connector is provided for LVDT sensor interface
- Inbuilt sine wave generator for LVDT coil excitation
- One number of op-amp signal conditioner circuit is provided for LVDT Output voltage signal conditioning.
- One number of potentiometer is provided to adjust the signal conditioner off set voltage adjustments
- One number of potentiometer is provided to adjust the signal conditioner Gain voltage adjustments
- Test points are provided ( more than 10) in signal conditioner circuit for Waveform measurement in CRO/Multimeter
- One number of LCD type display with controller is provided for output Displacement indications
- All are mounted on a nice cabinet with front panel PCB
- Necessary Circuit/Block diagram is printed on the front panel PCB for easy understanding the cirucit
- 230vac input with power ON/Off switch and Indications
