Description
The is is a compact, entry-level simulator that combines all of high-performance Rapid Control Prototyping and Hardware-in-the-loop simulation with MATLAB Simulink compatibility. This robust real-time power grid simulator offers the best performance at an affordable price.

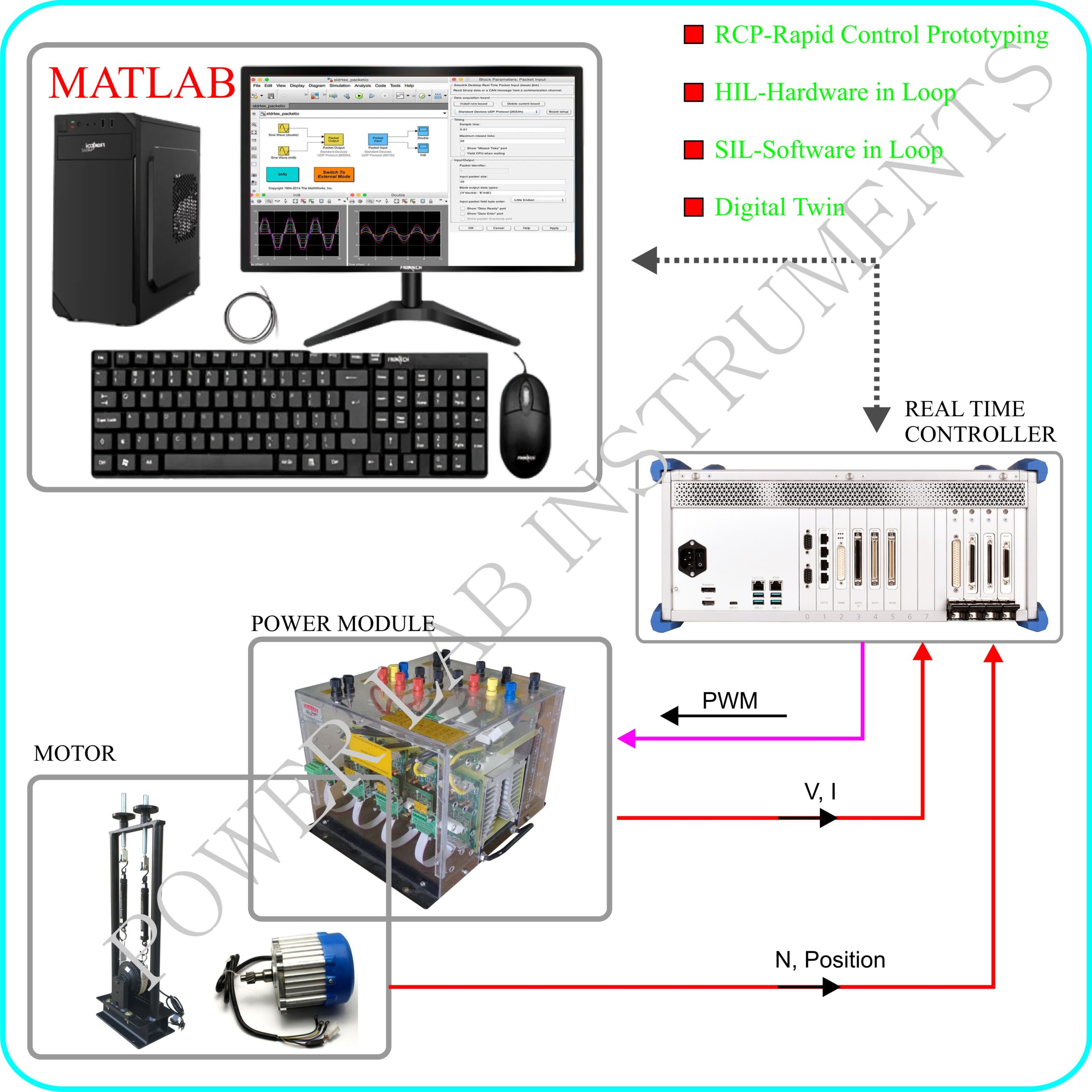

This MATLAB Real Time controller is a ready-to-use, high-performance, real-time testing platform with built-in analog and digital I/O channels. It includes all required cables, terminal boards, and adapters to enable easy connectivity from the target machine I/O to your hardware under test.
This controller can be used to generate PWM Signals for SCR, IGBT based power electronics application like DC-AC Inverter ,DC-DC Chopper & SCR converter based AC/DC/BLDC Switched Reluctance Motor (SRM) control application. PWM output of this controller can be interfaced with Power Module through External cable connection
- Computer :Intel® Xeon® E3 4 cores, 3.7 GHz or equivalent, 16 GB RAM, 256
- FPGA: Xilinx® Kintex®-7 410T
- Software Platform Compatibility : RT-LAB and HYPERSIM
- Toolbox Compatibility: ARTEMiS, eHS, ePHASORSIM, Orchestra, RT-XSG
- I/O board (max. 4 I/O modules per system):16 analog channels per module (max, of 64 channels per system)
- 32 digital channels per module (max, of 128 channels per system)
- High-Speed Communication: 4x SFP socket, 1 to 5 Gbits/s optical fiber
- Micro ATX Connectivity : 1 VGA port/4 USB ports/1 HDMI port/ 2 network ports/PCIe free slot available for optional I/O cards
- PWM/IO/ADC/DAC/CAN ,RS485 Chanel -based on customer selection
