Description

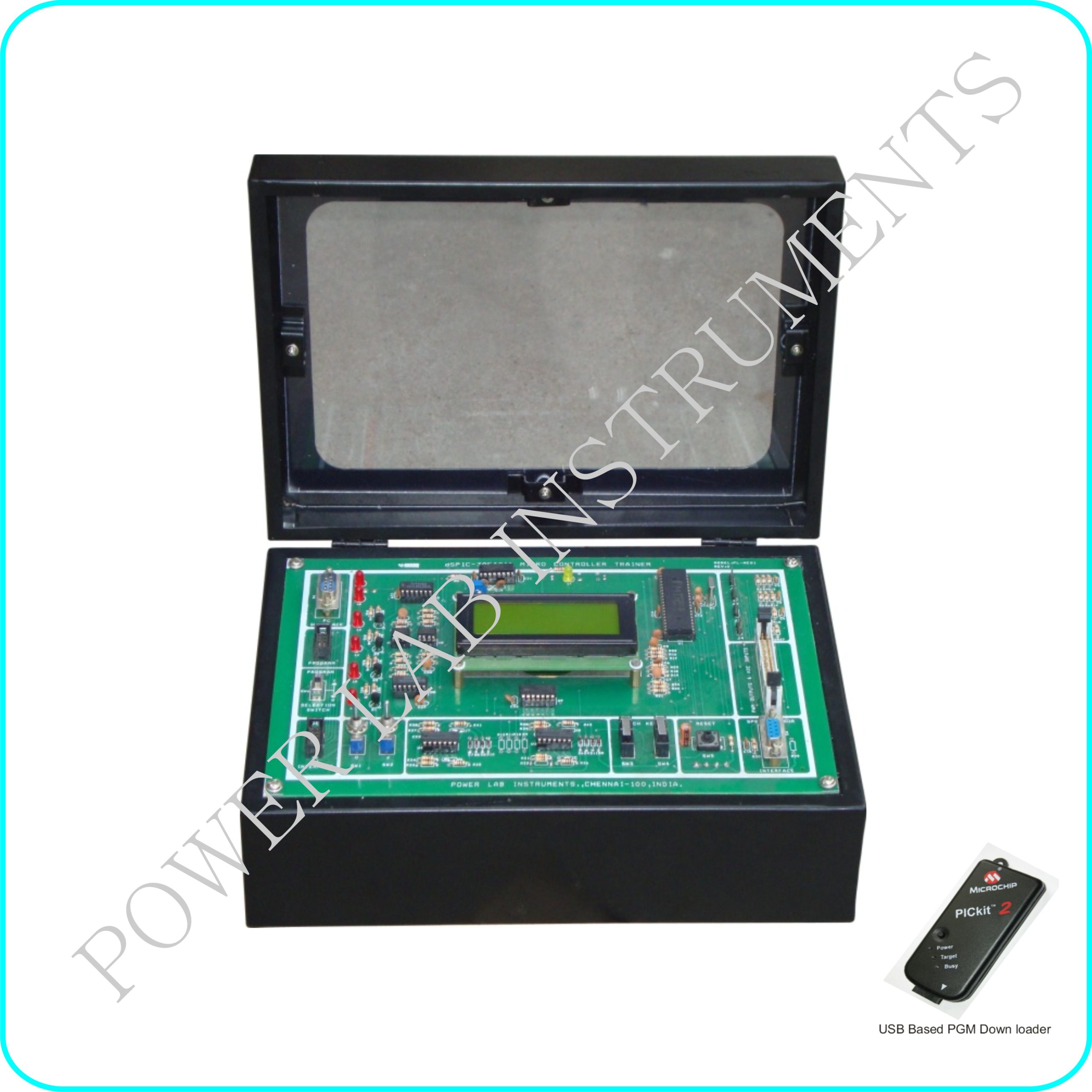

This PWM controller is designed based on Dspic30f4011 controller chip specially designed for Power Electronics & Motor control applications from “MICROCHIP” company and this controller can be used to generate PWM Signals for SCR, IGBT based power electronics application like DC-AC Inverter ,DC-DC Chopper & SCR converter based AC/DC/BLDC Switched Reluctance Motor (SRM) control application. PWM output of this controller can be directly interfaced with Power Module through External cable connection
Features
- Includes High-Performance Microchip dsPIC30F4011 Microcontroller with 48kb Internal Flash Program Memory
- 6 Numbers of PWM Outputs up to 15KHZ of switching frequency
- RS232 Connection with MAX232
- Internal EEPROM,Five 16-bit Timers
- Power, Programming and Test LED’s
- 2MB PROM & 24 Mhz clock speed
- USB – PGM Down loader
- 6 Numbers of ADC input
- QEP Sensor /Hall sensor/Speed sensor(Proximity)Interface
- PWM increment & decrement key,Reset switch & LED’s for Sensor status
- 20 X 4 LCD screen,PWM outputs are terminated by 34 pin FRC Connector
USB Based Program downloader
- One number of USB based program down loader is provided for NEW PGM Development & download
For More Details Contact: shanmugam@powerlabinstruments.com
Note : The above unit is only a PWM Controller. Power module and motor need to be purchased separately
