Description

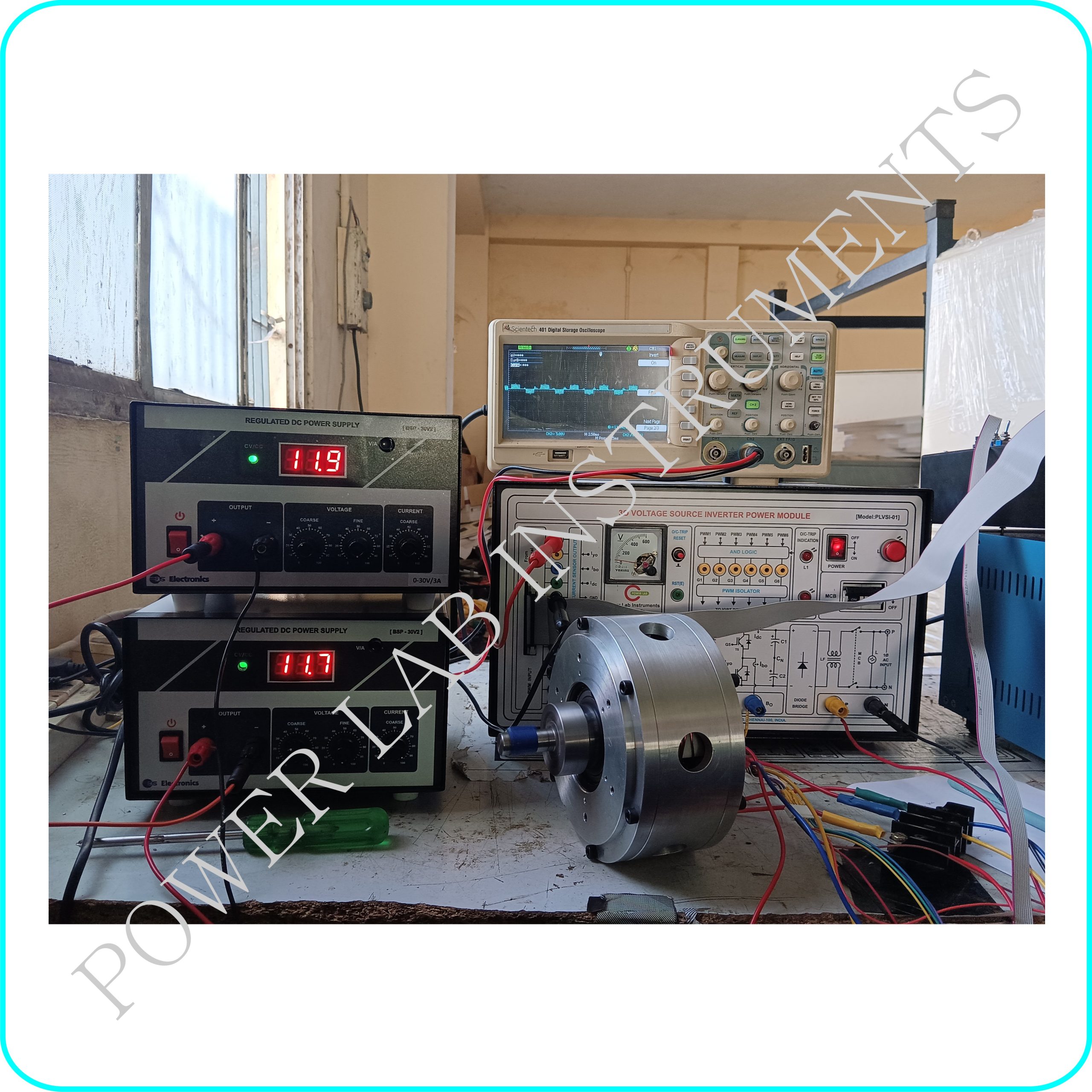

Set up designed to study the connection procedure and testing procedure of electric 3 or 4 wheeler set up using various components of electric vehicle like battery , EV.Motors , drive etc , Set up consists of
- Motor : 3 Phase Axial PMSM /BLDC Mid drive Motor / 60V/ 1000W /3500 RPM /inbult 3 Numbers of Hall sensor /with Differential gear , Drum & tyre
- Control Panel ( with Drive, battery, charger etc)
Controller : MOSFET based Controller /Input Voltage : 48-60VDC /Maximum Current : 30A
Battery : lithium ion battery -LPF / 60v / 18Ah /in built Smart BMS with PC interface Software and Bluetooth-Mobile App software
Charger : MOSFET based Charger /Input Voltage :170-250VAC /Output Voltage : 62V/Charging Current :5A/Charging Time : 3-4 Hour/Features : Led’s for status indicator
Panel
- Powder coated M.S Panel with diagram Stickered front panel to fix the Above Motor , controller and Battery and also to fix the below mentioned components
- Steering with Pedal Accelerator for speed control
- F/R selection switch, Left /Right indicator switch with Lamp
- Head light switch with Lamp, Horn switch with buzzer
- Brake control lever,Digital LCD-indicator ,To indicate,Speed in KM/H
- Motor Speed in Rpm,Left indicator status,Right indicator status
- Head light Indicator status,ON/OFF Switch with Key
- DC-DC Converter for Light (48V TO 12V, 10A)
- Necessary Banana terminals provided for motor , Battery , Controller input and outputs terminations for external patching.
- Panel Meter for Battery voltage and Current
- Necessary terminations for controller control signal (like hall sensor , indicator, throttle) output and inputs for external patching.
- Necessary Fuse and MCB provided for battery, Motor
Features
- Provision / Facility to Interface with External IGBT Power Module and Controller set up (FPGA /MATLAB/DSPIC etc)- for Motor control and testing
Optional Features
- PC Software for BMS -Smart Battery
- Blue tooth Mobile app- connectivity for BMS -Smart Battery
- PC Based Measurement and Acquisition System for Motor, Battery Voltage and Current
measurement ( Refer spec 3.0a) - Digital Data Logger with Indicator for External Assessment and Analysis with CAN logger ( Refer spec 3.0b)
