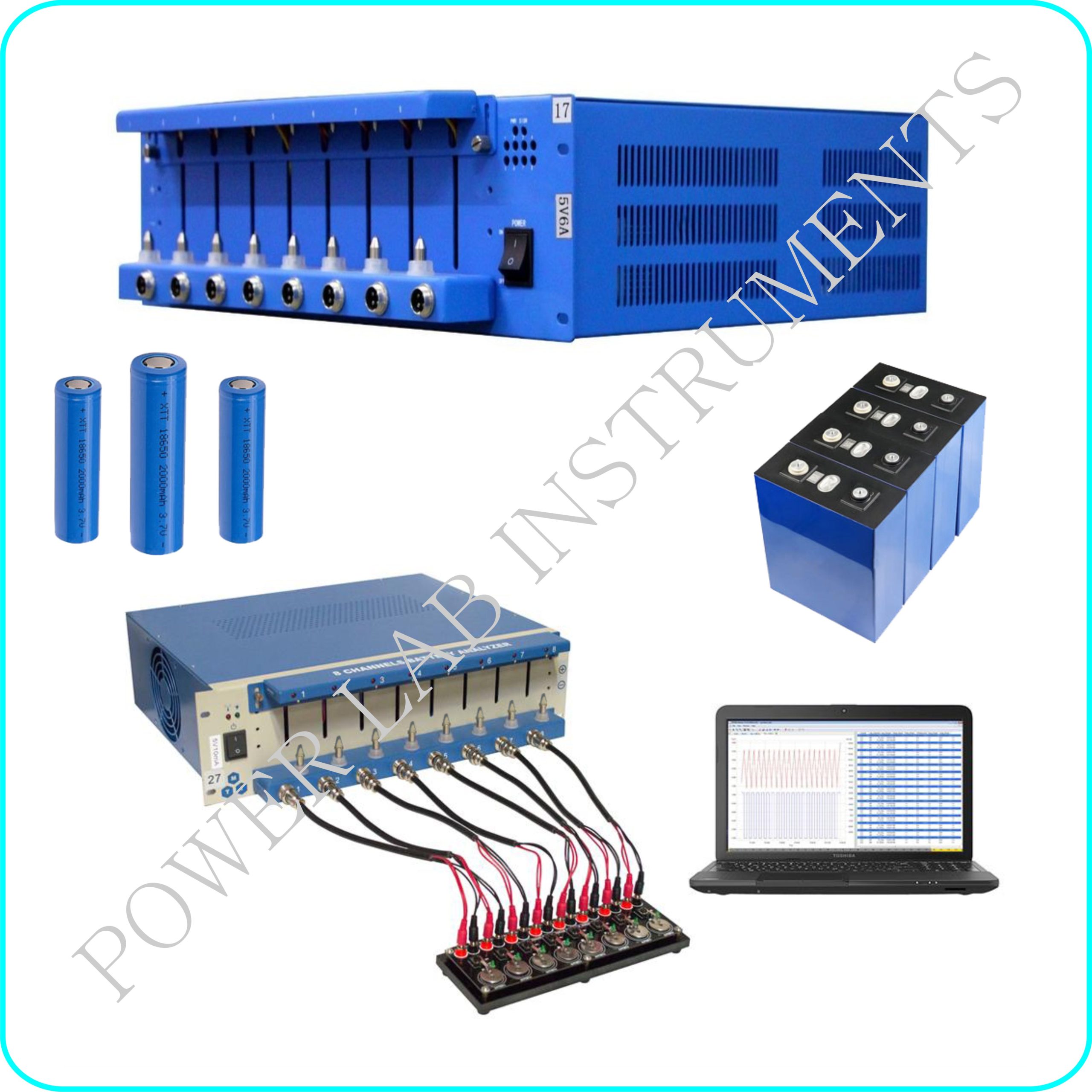

PC based – Cell tester (PEC-1.0)
Description
- Equipment model Cell Tester 5V, 6A ( 8 Channel).
- Communication RJ45 (network)
- Charging voltage 0-5V
- Discharge voltage 5-0.7V
- Charging current 0.02A～6A
- Discharge current 0.02A～6A
- Voltage accuracy + 0.05% FS ± 0.05% (RD)
- Accuracy of + 0.05% FS ± 0.05% (RD)
- Voltage 1 mV
- Current 1 mA
- Power output 5 ~ 6000 W
- The input ≧ 10 M Ω
- The input power AC 380V / 220V + 10% / 50HZ
- Current response Hardware response time when maximum current is output: 50ms
- Time setting For 0-9999 hours, the time units are hh: mm: ss. MS and the resolution is 0.1s
- Record the way Charging recording time, discharging recording time, stationary recording time and global recording time
- Record the frequency 100 MS to 100 S
- Sampling About 10mS for a single box
- Charging mode Constant current limit voltage, constant current constant voltage, constant voltage charging, constant power charging
- Charging cut-off Voltage, current, time, capacity, temperature
- Discharge Constant current discharge, constant power discharge, constant voltage discharge
- Discharge cutoff Voltage, current, time, capacity, temperature
- Protection function
-
-
-
-
-
-
-
- Abnormal data recovery;
- Battery reverse connection protection function
- Software over voltage, under voltage,
- over current, under current, over capacity protection,
