Description

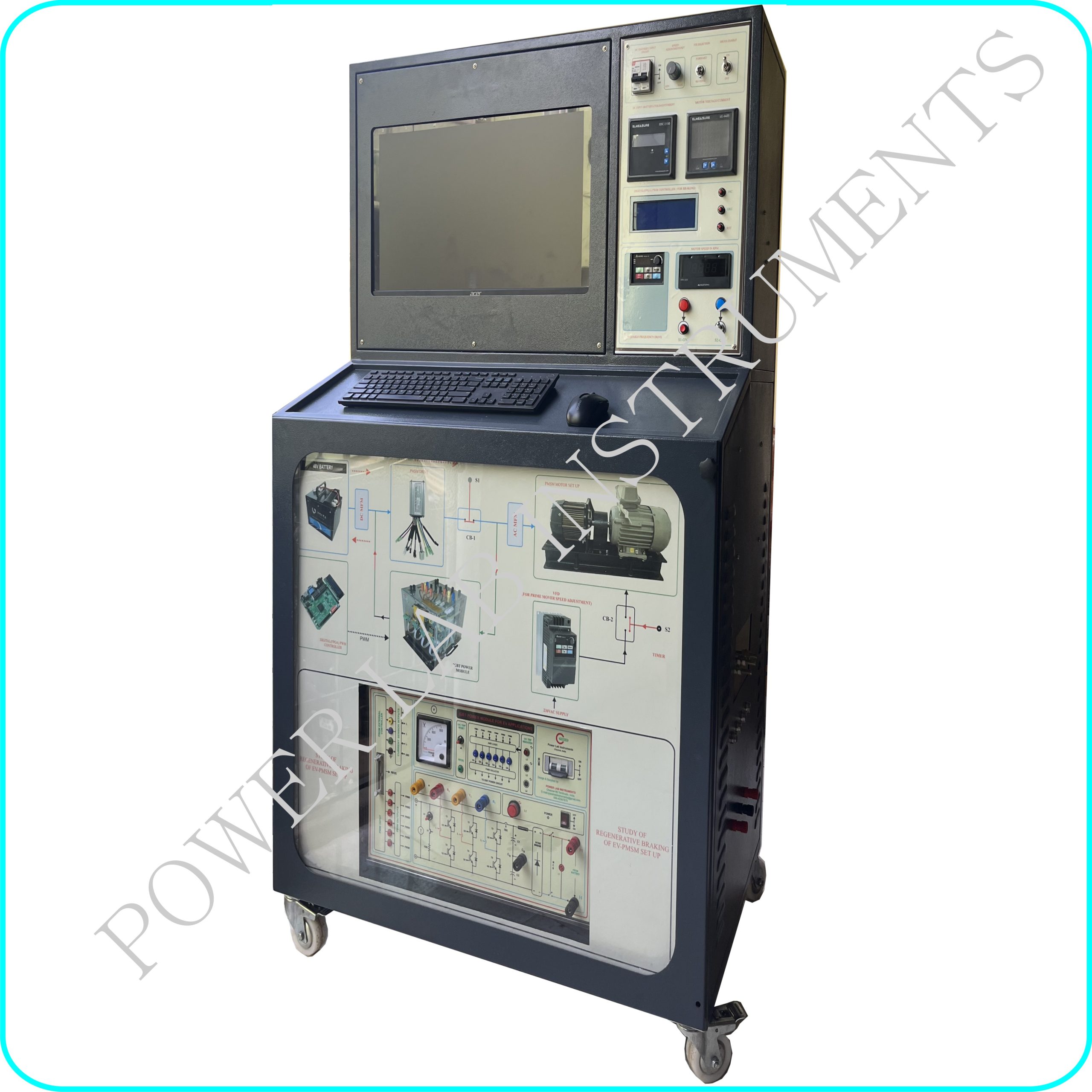

This set up is designed to study the working principle of Regenerative braking and charging system used in Electric vehicle , set up consists of
- 1 kw , 3 Phase PMSM Motor with Prime mover set up
- 1KW PMSM Drive with battery set
- IGBT Power Module +PWM Controller for Regenerative braking study
3 Phase PMSM Motor
Type : 3 Phase PMSM
Voltage : 48V
Power : 1KW
Speed : 3500RPM
Feedback : 3 numbers of Hall sensor
- Coupled with 3 phase AC Motor (1.5KW) /3000RPM @ act as a prime mover
- Variable Frequency drive (2hp) is provided to adjust prime mover speed
PMSM Drive
Digital meters for drive input dc voltage measurement
- Digital meters for motor speed Measurement
- Potentiometer for speed adjustments
- SPDT switches for Forward /Reverse selection
- MCB for input DC ON/OFF, Fuse for output side
- DC Source (Battery, 48v, 25ah, lfp lithium battrey+charger )is provided for drive input
- All are mounted on a nice powder coated cabinet with front panel sticker
Specification
Input : 48V VDC from battery
Output : Suitable for PMSM Motor
Power : 1KW
