Description

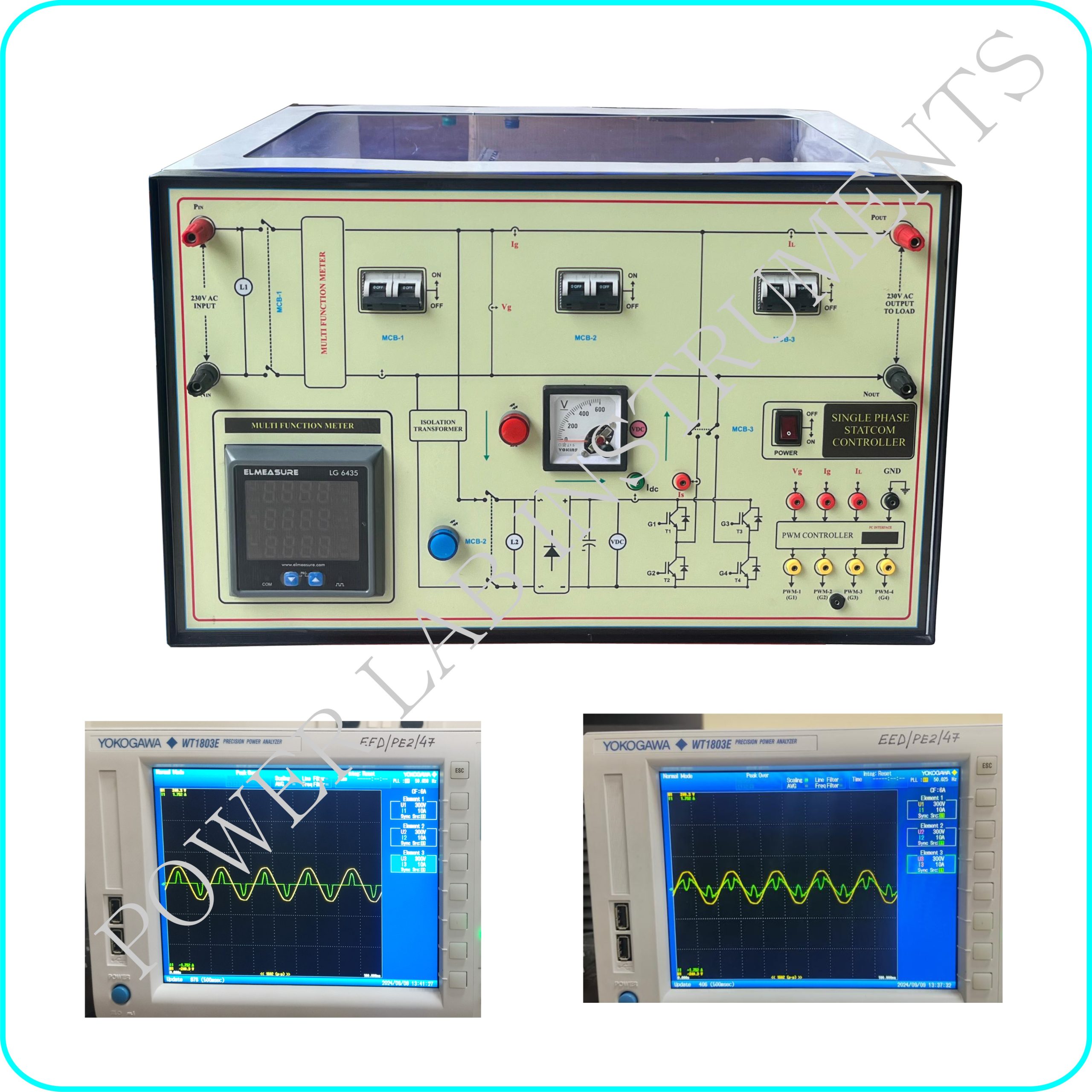

This STATCOM controller can be used study the harmonics level reduction in non linear load like battery charger . This set up consists of
- 60V , 18AH Lithium Battery with 5A charger
- STATCOM Controller with digital Harmonics meter
Specifications
- 230VA C Input and 230VAC Output to non linear load (ie Battery charger)
- 1KW Capacity (230V , 4.5A)
- Current Harmonics improvement from 120% to 20% (3rd, 5th & 7th etc)
- Facility to study with different harmonics implementation through PC software
- SIC MOSFET based H bridge with STM 32 Microcontroller based PWM Controller
- Test points for PWM and Feed back signals ( V, I etc)
- Digital meter is provided to indicate V, I , PF & Harmonics
- MCB provided to study with & without Harmonics compensation effect
- All are Mounted on a nice cabinet with Stickered front panel
