Description

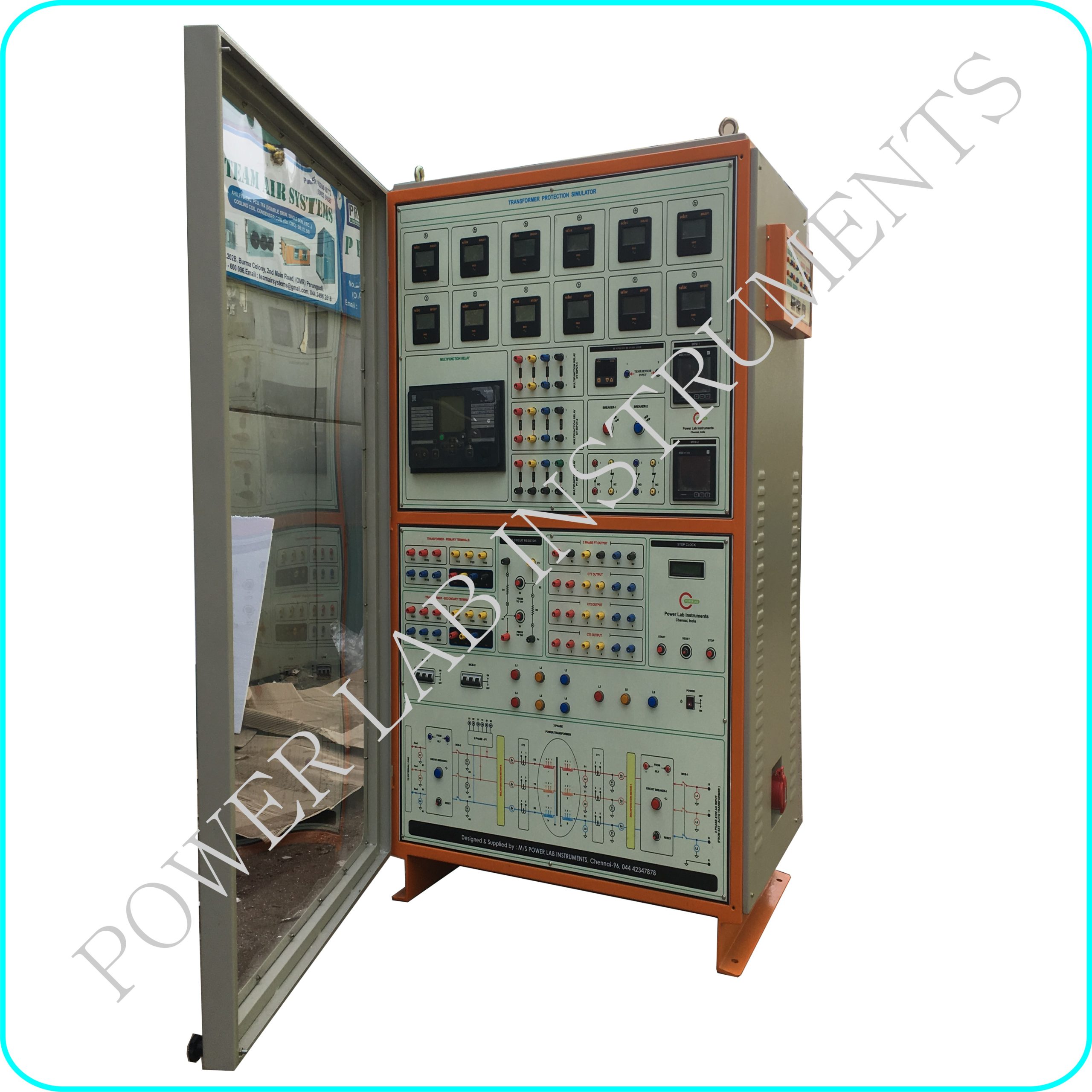

This set up is designed to study the various protection scheme of three phase Transformer set up using digital type (SCHNIDER Make) power systems protection relays. it consists of
- 3Ø /2KVA 3 phase Transformer set up
- Power systems Protection Relay (SCHNIDER Make )
- Meter panel with R loads& Fault simulator
Transformer : 2 KVA, 415V/415V, three phase, star-star, normally air cooled
- One number of 3 phase transformer with primary & secondary tapings (25 , 50 ,75 ,100%)is provided
- Capacity : 2KVA
- Connection : STAR/STAR
- Both Primary & secondary tapping’s are terminated in front panel for simulating fault
Power systems Protection Relays
- SCHNIDER Make /Model P3T32-
Meter panel with R loads.
- Digital meters are provided for transformer primary & secondary Voltage/ current measurement.
- Load : 3 phase resistive load -2kw
- Variable Voltage Source/3 phase Autotransformer – Variable Voltage Source : 0-415V, 8A,
- One number of Automatic trip time measurement circuit (ATTM Circuit) is provided for Relay trip time measurement
- Load : 415 V/10A/Phase with unbalanced facility. resistive load 1 set
- Power Analyzer : Digital multi-monitoring system (i.e. VA, W, VAR, f, Hz, A, V) Panel mount flash type
