Description

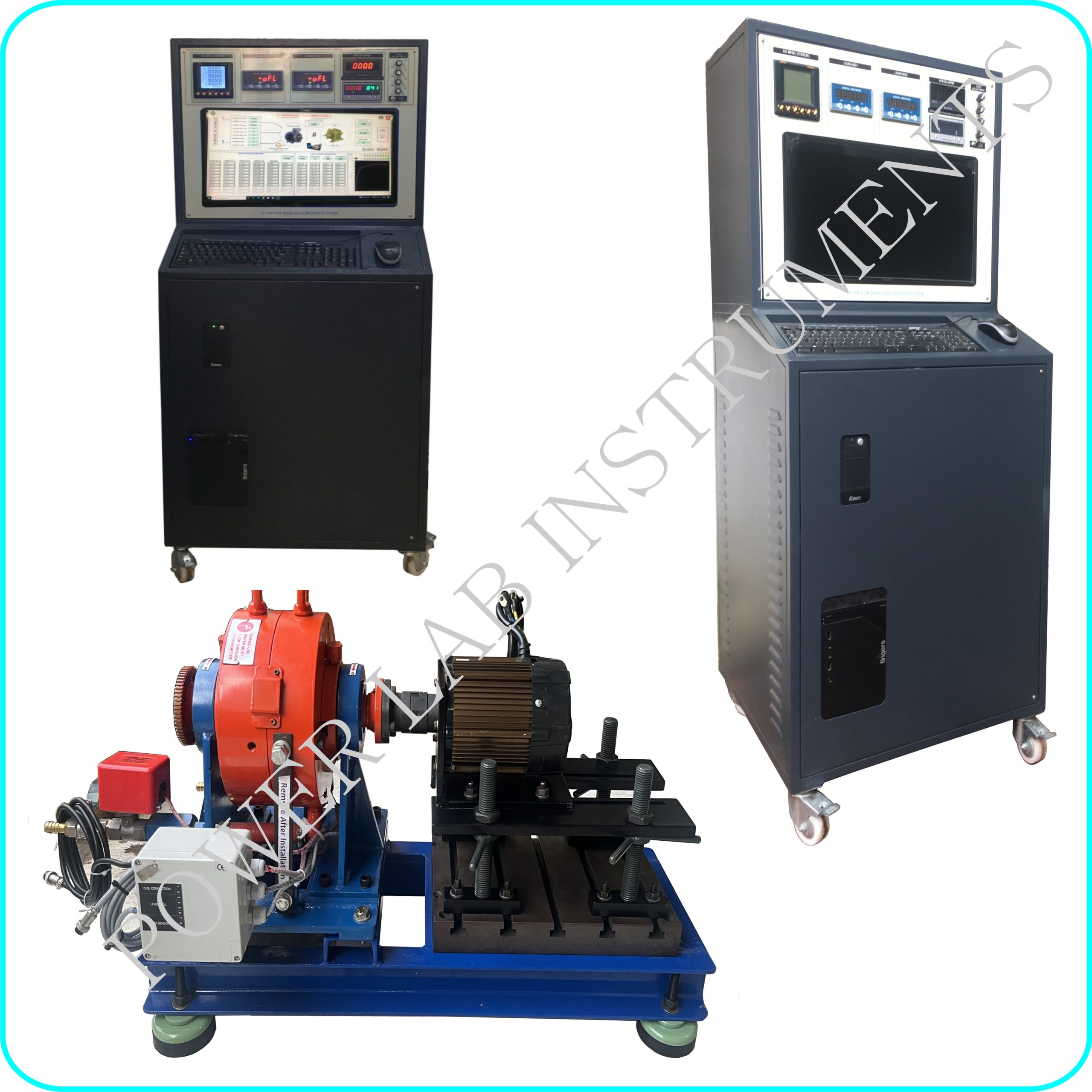

This dynamometer with adjustable X-Y table is designed to test any type of EV motors up to 5 kW, 6000 RPM. It includes provision to mount the test motor securely on the rig. The setup consists of:
Dynamometer
- Type :Eddy Current Dynamometer Water Cooled
- Maximum Power :5KW -Continuous / Bi-directional rotation
- Power transmission :Through High Precision strain gauge type load Cell.
- Loading/ Unloading :By Microprocessor based controller.
- Torque display :4 Digit Digital Indicator in Nm RPM display : 4 Digit Digital Indicator
- PC Communication :RS485 , Modbus RTU Protocol Calibration Set up : 2 Nos. Calibration Arms
- Protection :Water flow switch for dry run protection
PC based Software (for drive cycle implementation )
- Computer front end software ( developed by Lab view) is provided to display the below Motor & Source parameters
- Motor -Speed in RPM
- Motor -Torque in Nm
- Output Mechanical Power in KW
- Source- Battery current in AMP
- Source- Battery Voltage IN Volt
- Source- Battery Power in KW
- Provision for load control ( load Torque (NM) , time setting) other mode of operation like Constant speed Variable Load , Constant Load Variable speed & Variable speed Variable Load
- Software Features Torque, Speed readings will be visible on Y-axis against time on X-axis. Torque, Speed, & Power will be stored into the file opening in MS Excel. Graph plotting against Torque & Speed, will be done manually in Excel/ Facility to save data for printout
