Description

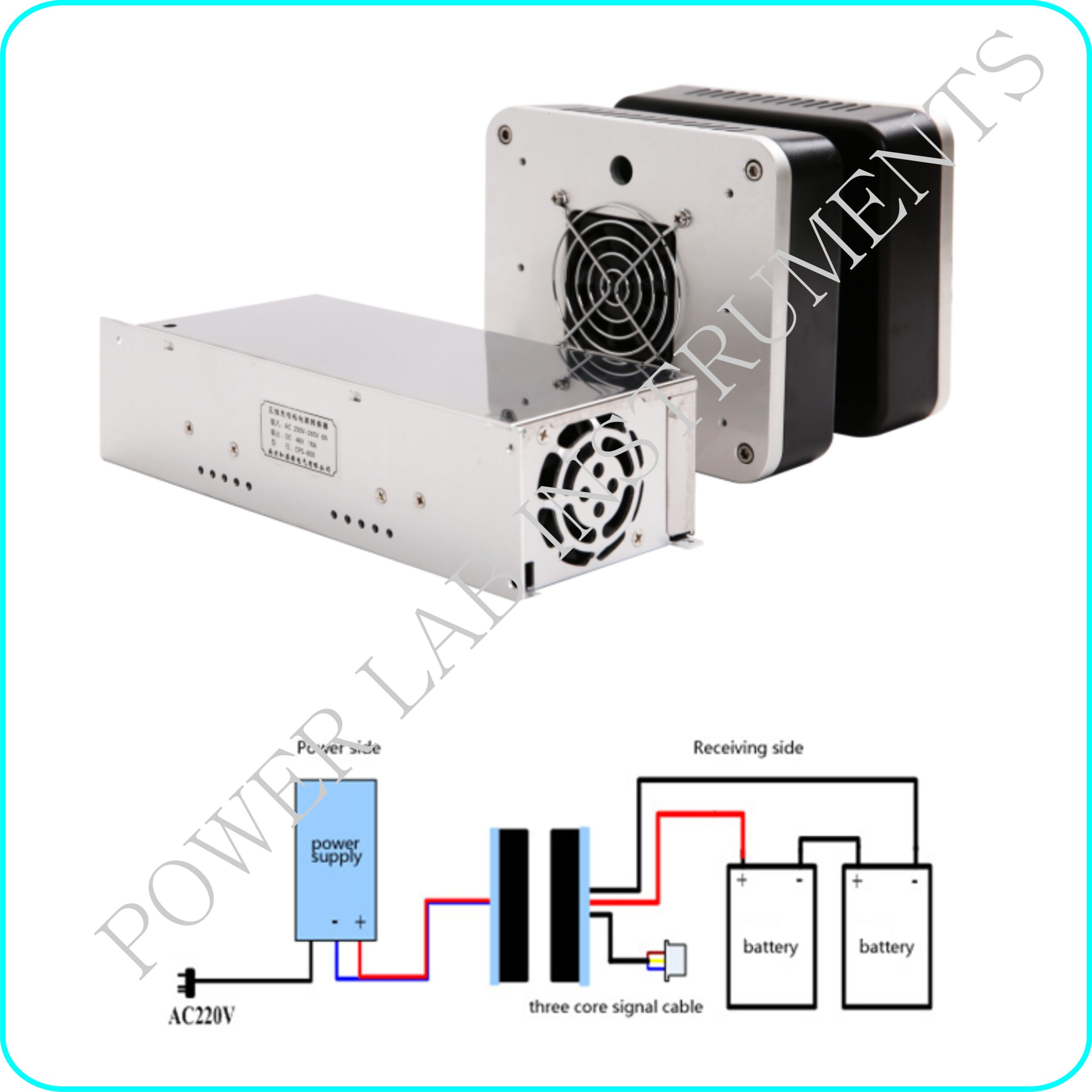

It is a high performance battery charger and suitable for providing non-contact charging for various electric vehicle like forklift, golf cart , adaptive control technology to overcome the charging distance and load changes on the system performance, high control accuracy, for lithium batteries, lead-acid batteries, Ni-MH batteries and super capacitors to provide accurate and reliable charging, to protect and extend battery life
Specifications
- Input voltage: AC220V ± 15%, single phase 50Hz
- Input current: 6A (max)
- Output voltage:0V ~ 60.0V (adjustable, factory setting 54.4V)
- Output current:8 ~ 16A (adjustable, factory setting 10A)
- Regulating accuracy : ± 0.3%
- Steady flow accuracy ± 1.0%
- Power efficiency:≥85%
- Charging distance:air gap length: 0-30mm , X axis & Y axis deviation : ± 20mm
- Charging frequency :30 ~ 60kHz (self-tuning)
- Ambient temperature:-20 ~ + 50 ℃
- Insulation resistance:≥ 100MΩ
- Impact resistance:10G (all directions)
- Vibration resistance: 6m / sec2 (10 ~ 55Hz)
- For More details Contact : shanmugam@powerlabinstruments.com
