Description

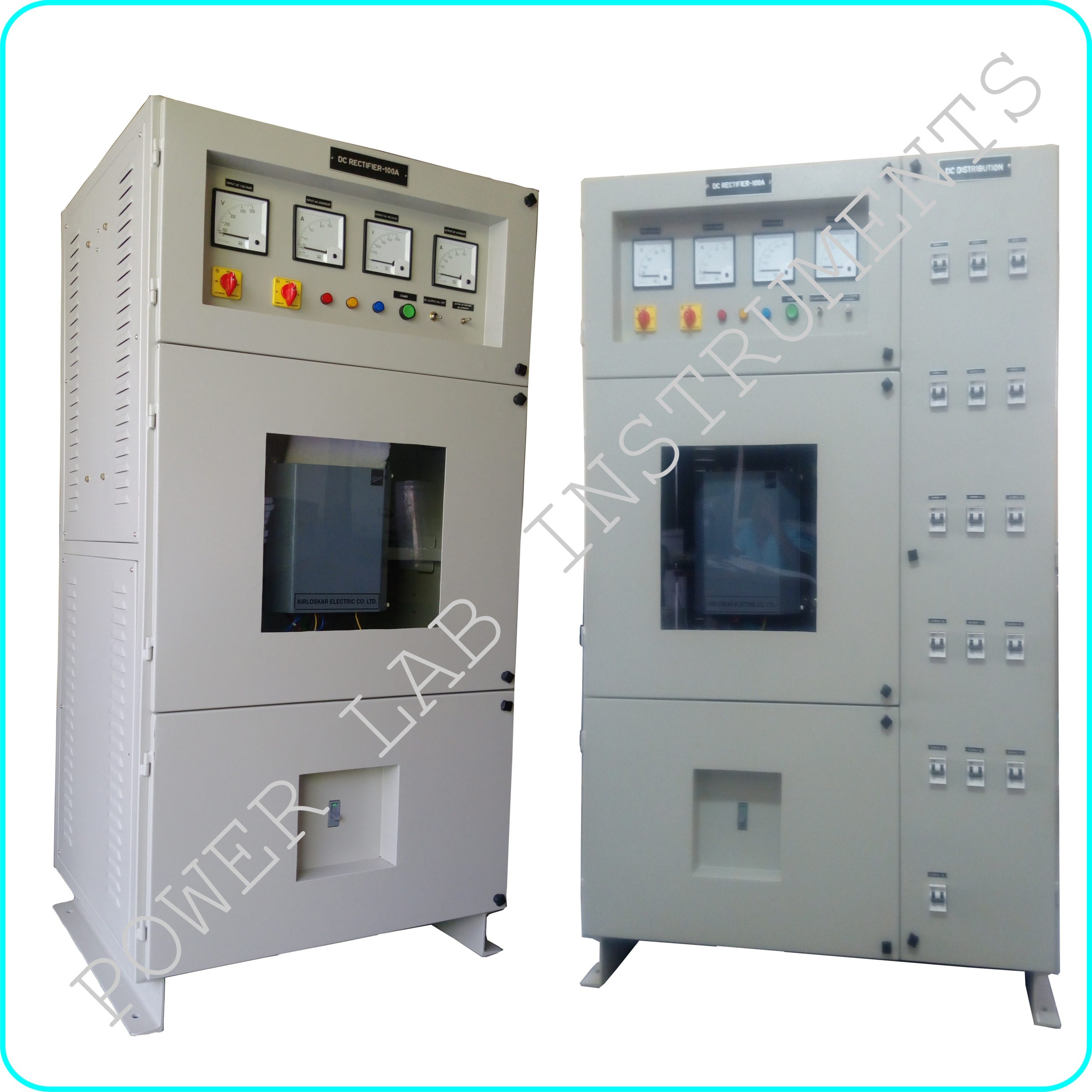

This rectifier unit is specially designed for electrical machines lab dc source unit, it consists the following features
- Rectifier panel is designed based on KIRLOSKAR Equivallent Make THYRISTOR DC CONVERTER
- Closed loop control for voltage regulation
- Built in Over current protection and indication circuit
- Potentiometer is provided for output dc voltage adjustments (0-300vdc)
- One number of Rectifier ON/OFF TOGGLE Switch is provided
- One number of input AC ON/OFF Switch (MCCB) is provided
- One number of Analogue DC Voltmeter (AE Make) is provided for output dc voltage measurements
- One number of Analogue DC Ammeter(AE Make) is provided for output dc Current measurements
- One number of Analogue AC Voltmeter (AE Make) is provided for input AC Voltage measurements
- One number of Analogue AC Ammeter(AE Make) is provided for input AC Current measurements
- Selector switch is provided for 3Ø input line voltage & current selection in ammeter & voltmeter
- One number of 3 phase isolation transformer is provided for input side
- LED Indications for Phase reversal , Over current , ON/OFF , Current limit etc
Specification:
Input : 3 phase 415vac
Output : 0-300vdc @ 100A/150A/200A

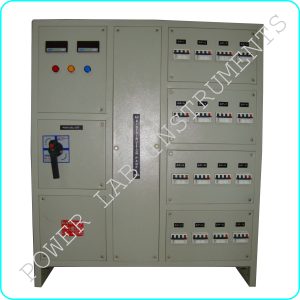

DC Distribution Panel ( Optional)
- 16 Number of dc output
- 16A/32A -DC MCB is provided @ each output
- Input ON/OFF Switch for distribution side
- Custom made also possible
For More Details , Contact : shanmugam@powerlabinstruments.com
