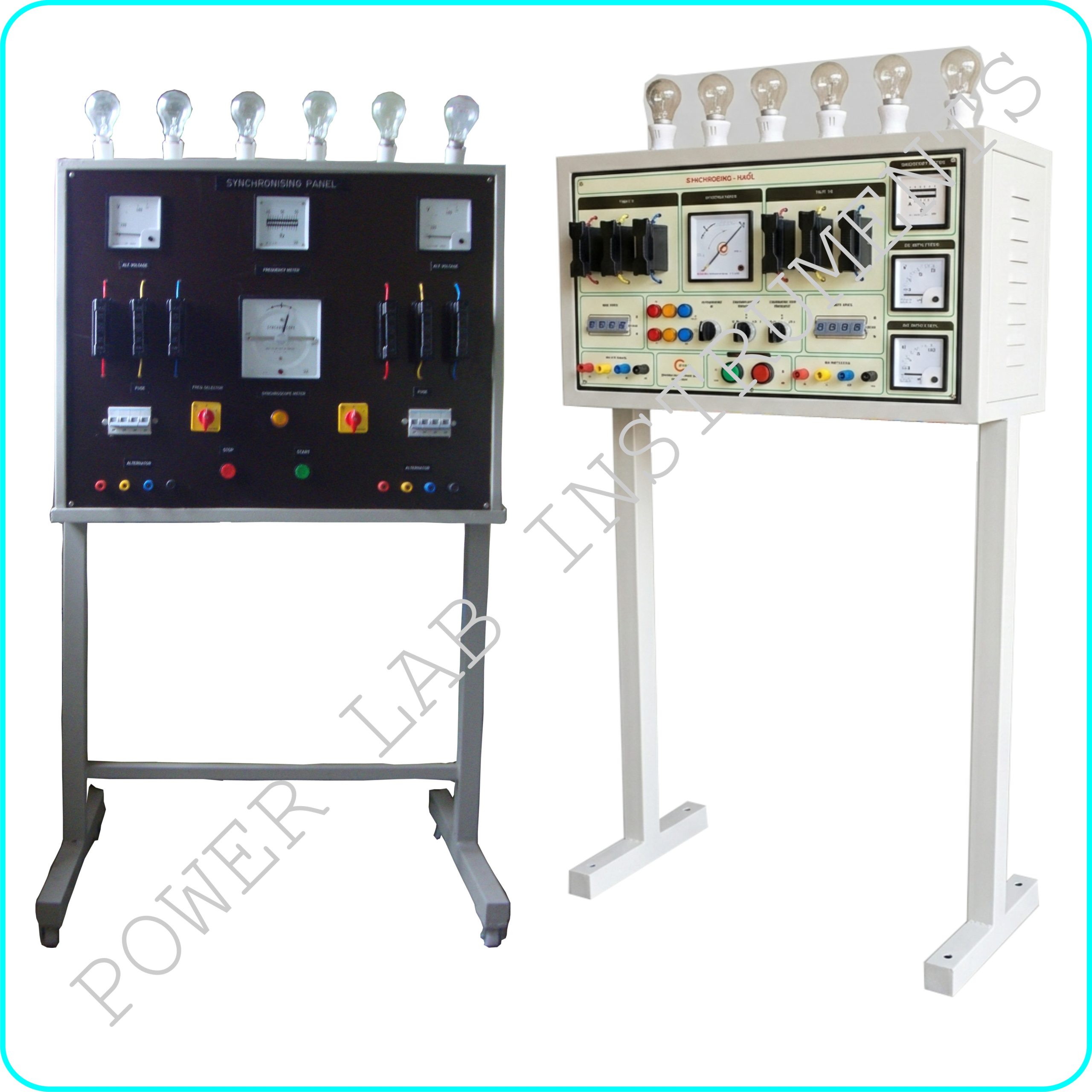

Synchronizing Panel for Machines lab (PML-12)

Description

This synchronizing panel unit is designed to synchronize  AC alternator with TNEB or Two alternators in Machines lab experiments by using the below three methods

1. Dark Lamp Methods
2. Bright Lamp Methods
3. Synchroscope Methods

This panel consists of,

• One number of Synchroscope with PT for EB & GEN side
• One Set of (6 number of Lamp) lamp with holder for DARK /BRIGHT lamp exp
• One number of Frequency Meter with selector switch is provided
• Two Numbers of AC Voltmeter 0-600VAC is provided
• One number 3 phase AC MCB with Indicator & Fuse is provided for Alternator-1 input
• One number 3 phase AC MCB with Indicator & Fuse is provided for Alternator-2/Mains input
• All are mounted on a nice Stickered front panel fixed on a nice frame
