Description

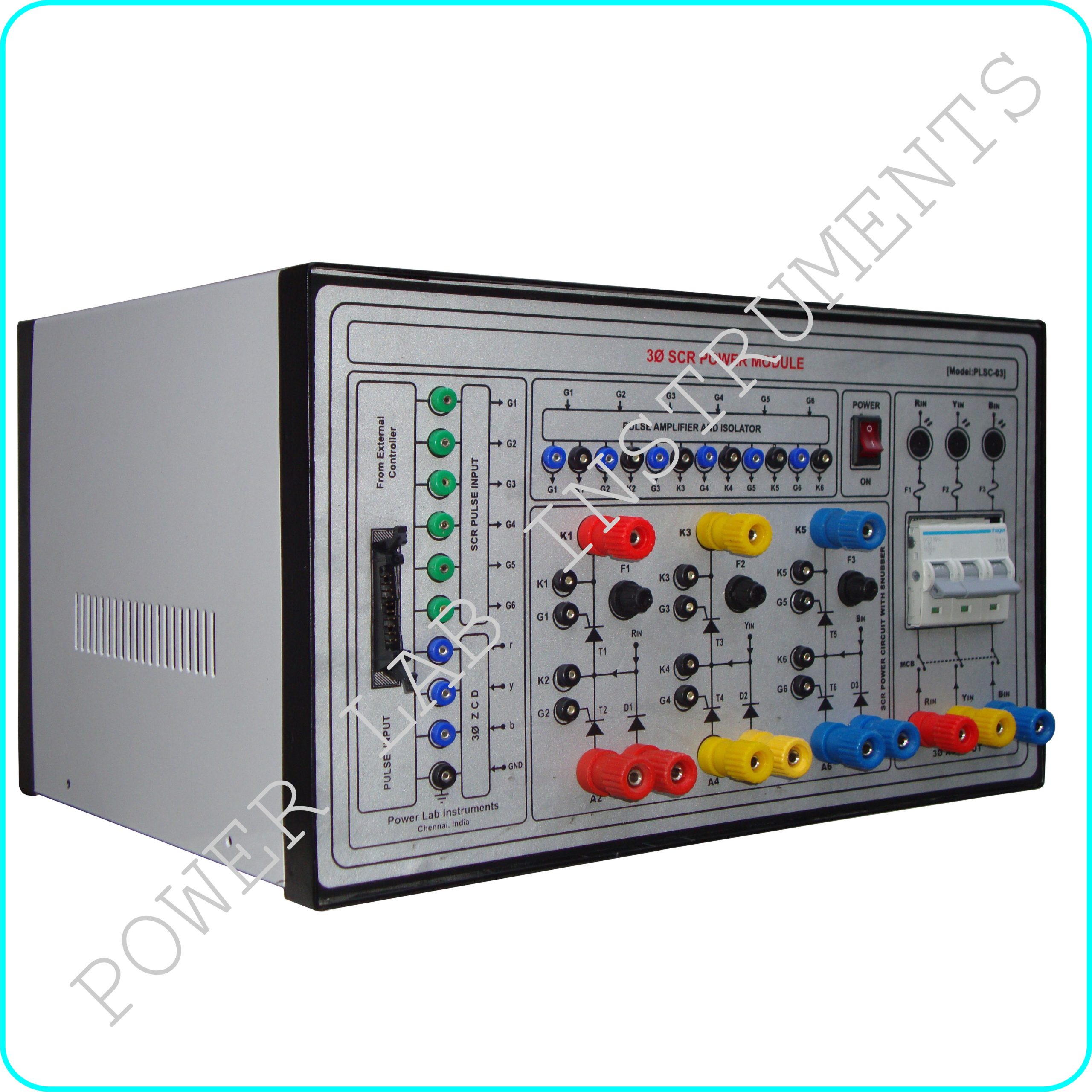

This power module is designed by using SCR & DIODE for 3 Phase AC-DC Controlled Converter applications This power module can be used for DC Motor open loop & closed loop speed control application by external PWM controller and Motor interfacing
- SCR based 3 phase Half & Fully Controlled Converter
- Six numbers of SCR, Ratings @ 1200V @ 50A, fixed With proper heat sink for cooling & Snubber circuit
- Three numbers of Diode ( 50A , 1200V) with With proper heat sink for cooling & Snubber
- 6 numbers of Pulse amplifier & 1;1 Pulse transformer for all pulse isolation
- One numbers of 3 Phase supply synchronizing Circuit is provided for SCR Pulse generation reference
- MCB provided for input power ON/OFF
- SCR &Diode outputs and AC inputs are terminated in banana connector
- Specifications- Input- 3 phase 440VAC, Output – 0-400V AC/DC @ 25A
- HV Accessories like Autotransformer & Isolation transformer provided @ optional
