Description

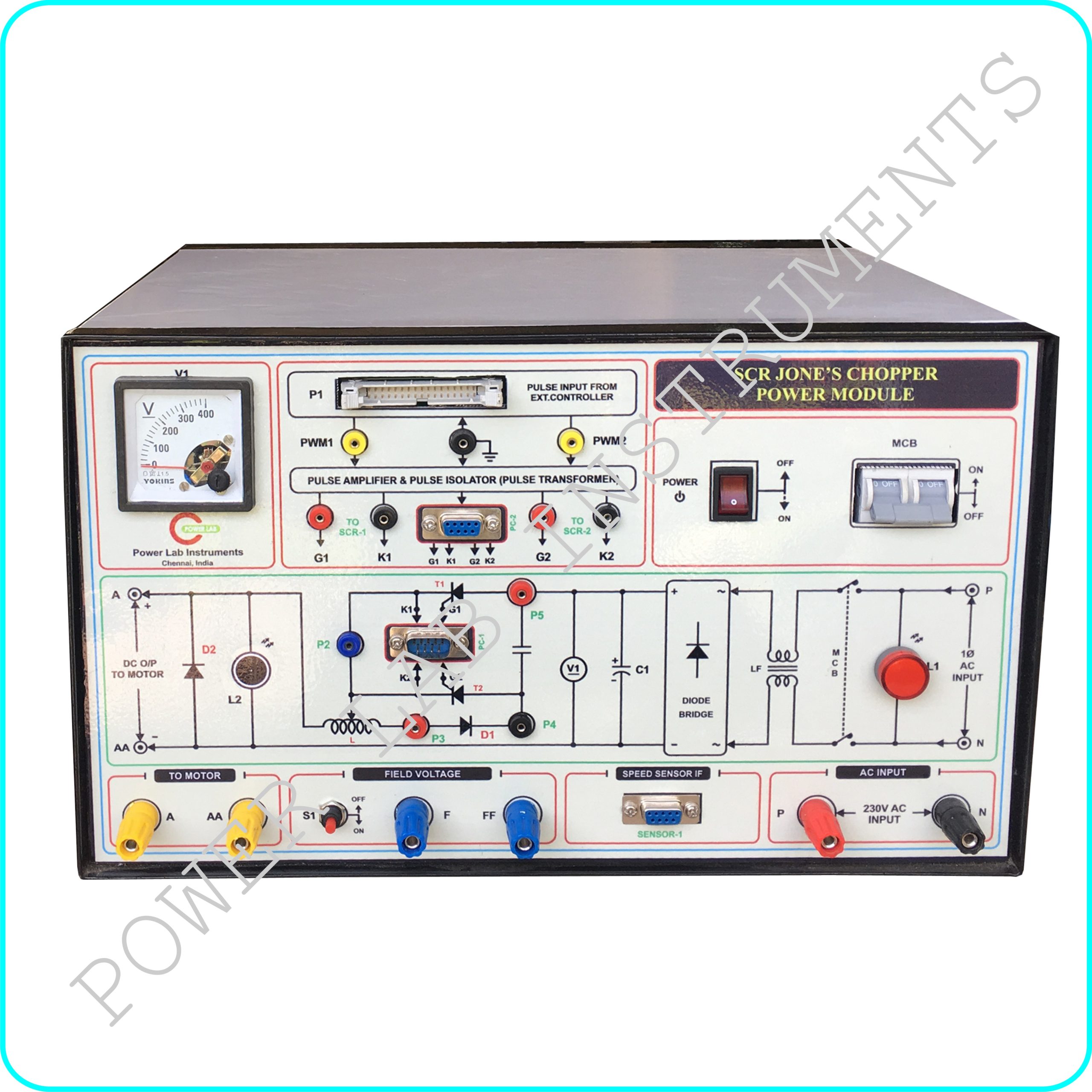

This power module is designed by using SCR , Diode & Commutating components for DC-DC Jones Chopper Circuits .This power module can be used for DC Motor open loop speed control application by external PWM controller interfacing
Specification
Input : 0-230VAC or 300VDC
Output : 0-200VDC
Capacity ; 5A (Suitable for 1 hp dc Motor)
Power Circuits
- Two number of 1200V,27A SCR with heat-sink is provided for Power circuit
- One number of Power diode (25A,600V) & Inductor (Centre Tapped)-5A & Commutating Capacitor is provided to form JONES CHOPPER Power Circuit
- Necessary Commutating Capacitor is provided to form JONES CHOPPER Power Circuit
- 2Numbers of Pulse isolation & Amplifier circuits
- SCR Pulse input terminated in front panel connector for external pulse input connection
- MCB is provided for power circuit input ON/OFF & Protection
- Single phase diode rectifier & Filter circuit is provided for AC-DC Conversion
- DC Voltmeter ( 0-300VDC) is provided to indicate power circuit input dc voltage
- All necessary test points are provided for external patching
- All are mounted on a nice cabinet with sticker front panel with mimic diagram
