Description

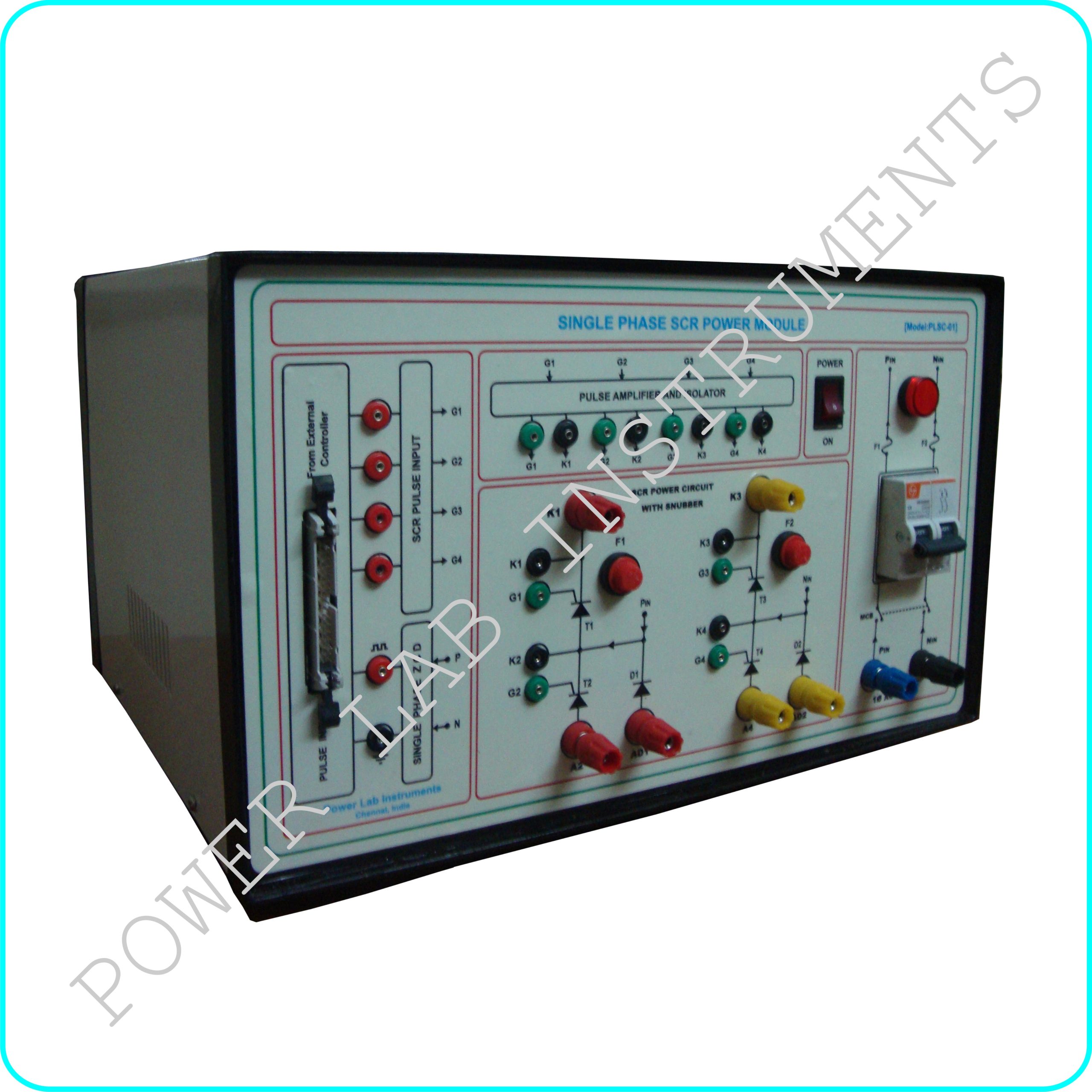

This power module is designed by using SCR & DIODE for AC-DC Controlled Converter applications This power module can be used for DC Motor open loop & closed loop speed control application by external PWM controller & Motor interfacing
- SCR based Half & Fully Controlled Converter & AC regulator
- Four numbers of SCR, Ratings @ 1200V @ 25A, fixed With proper heat sink for cooling and Snubber circuit
- Two numbers of Diode ( 35A , 1200V) with With proper heat sink for cooling and Snubber circuit
- 4 numbers of Pulse amplifier & 1;1 Pulse transformer for all pulse isolation
- One numbers of 230/9V Supply synchronizing transformer & ZCD Circuit is provided for SCR Pulse generation
- MCB provided for input power ON/OFF
- SCR &Diode outputs and AC inputs are terminated in banana connector
- Specifications- Input- 230VAC, Output – 0-200V AC/DC @ 5A , Suitable for RL load & Motor Control applications
