Description

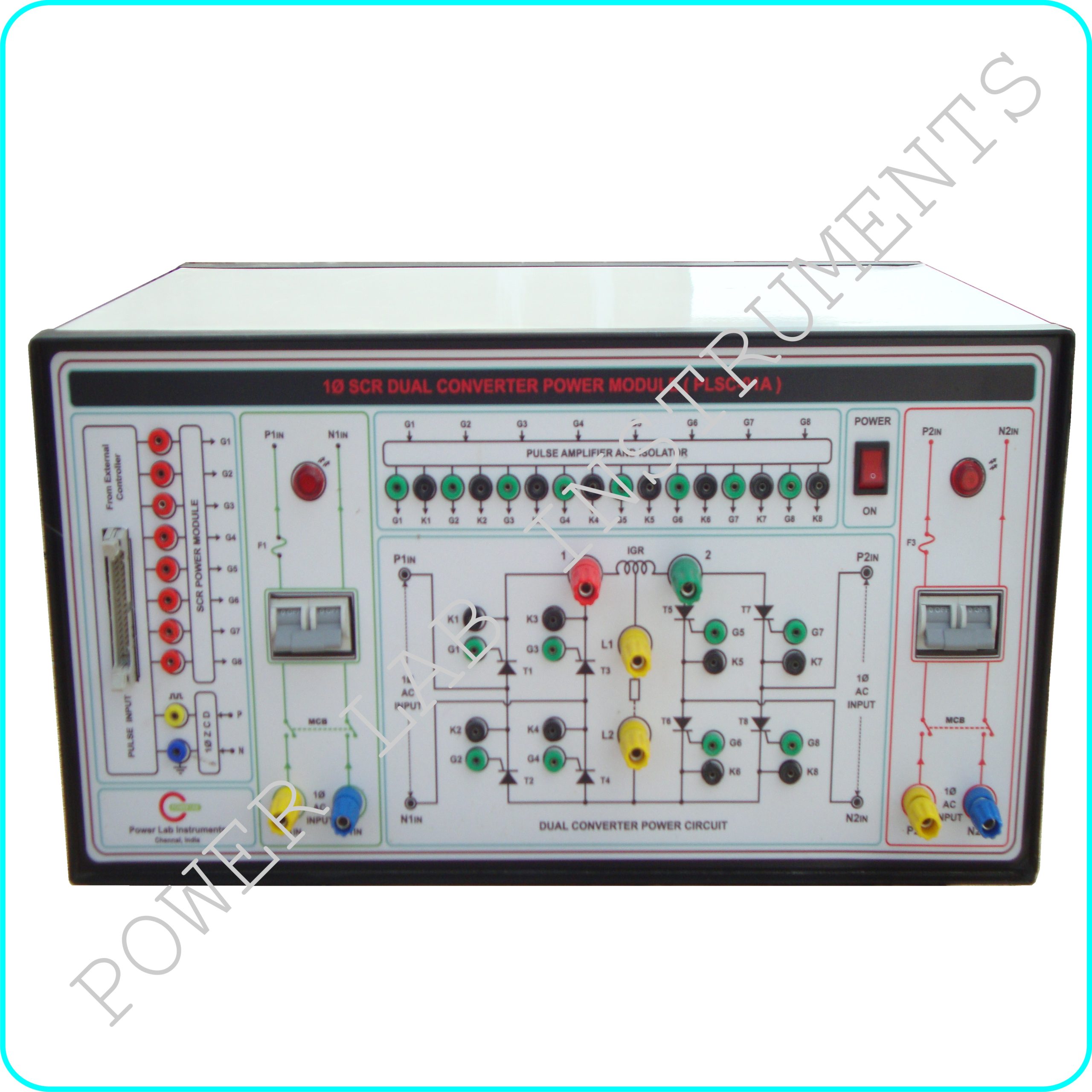

This power module is designed by using SCR for Single Phase Dual Converter applications This power module can be used for DC Motor speed control application by external PWM controller & Motor interfacing
- SCR based 1 phase Controlled Dual Converter
- 8 numbers of SCR, Ratings @ 1200V @ 25A, fixed With proper heat sink for cooling and Snubber circuit
- 8 numbers of Pulse amplifier & 1;1 Pulse transformer for all pulse isolation
- One numbers of Supply synchronizing Circuit is provided for SCR Pulse generation
- MCB provided for input power ON/OFF
- SCR outputs and AC inputs are terminated in banana connector
- Specifications- Input- 0-230VAC, Output : +/- 0-200V DC @ 5A
- Two number of 230/110-0-11vac @5A transformer is provided
- One number of IGR-5A (Inter group reactor) is provided
