Description

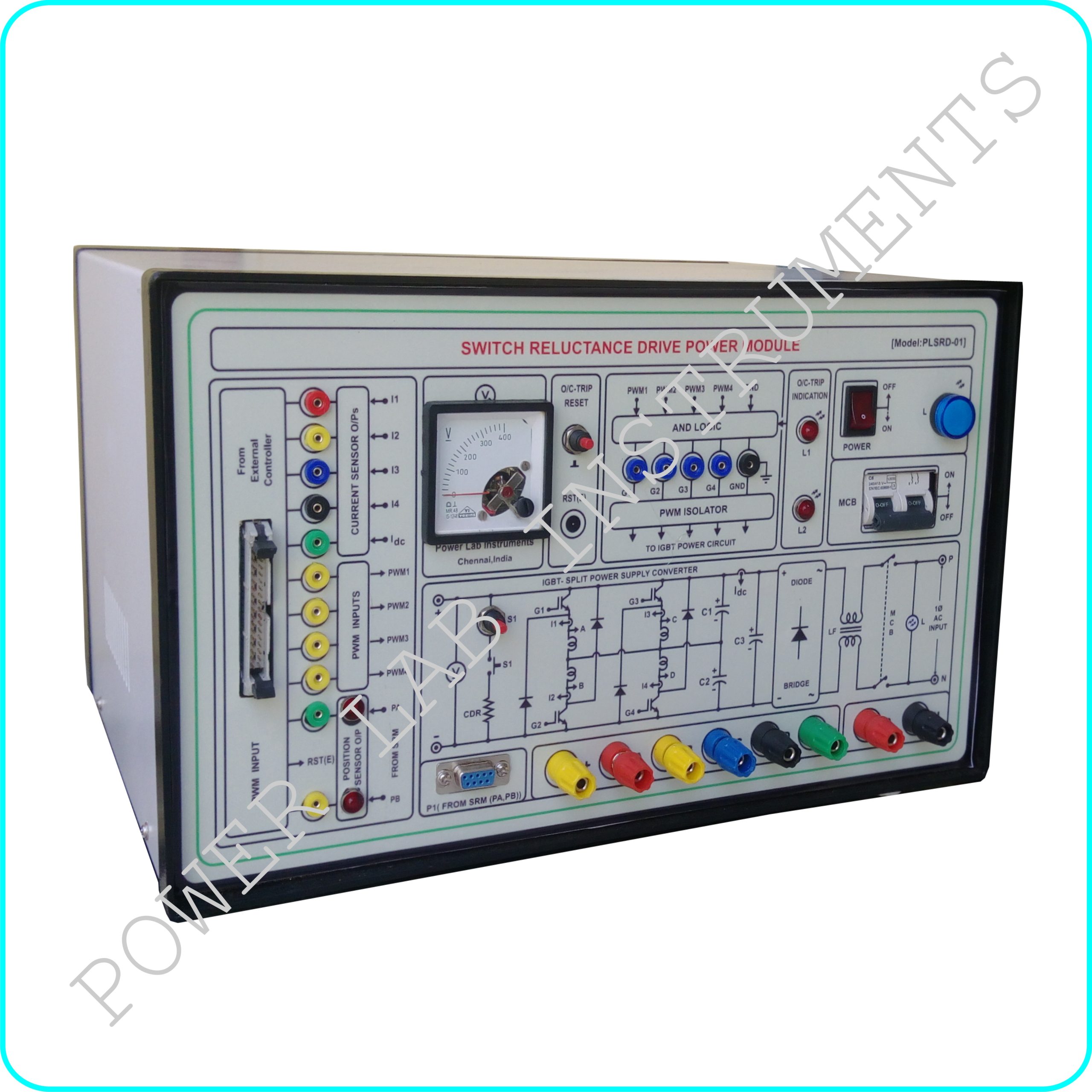

This power module is designed by using IGBT for SR Motor control application. This power module can be used by proper PWM external controller interfacing
- IGBT -1200V, 50A
- 4 numbers of IGBT With proper heat sink for cooling
- 4 numbers of Diode With proper heat sink for cooling
- Single phase Diode rectifier ( 35A , 600V) with filter capacitor is provided for AC-DC
Conversion
- Built In IGBT driver circuit & 4 Numbers of OPTO-IC is provided for all PWM isolation
- 4 numbers of Hall effect current sensor is provided for output motor current measurement
- One numbers of Hall effect current sensor is provided for input DC current measurement
- Over current trip circuit is provided with trip status indicator
- External RESET switch is provided for Trip clear.
- MCB provided for input power ON/OFF
- IGBT outputs and AC inputs are terminated in banana connector
- Specifications- Input- 230VAC, Output – @ 6A suitable for 1 hp SR motor
Note : Asymmetric power circuit also possible against customer requirements
