Description

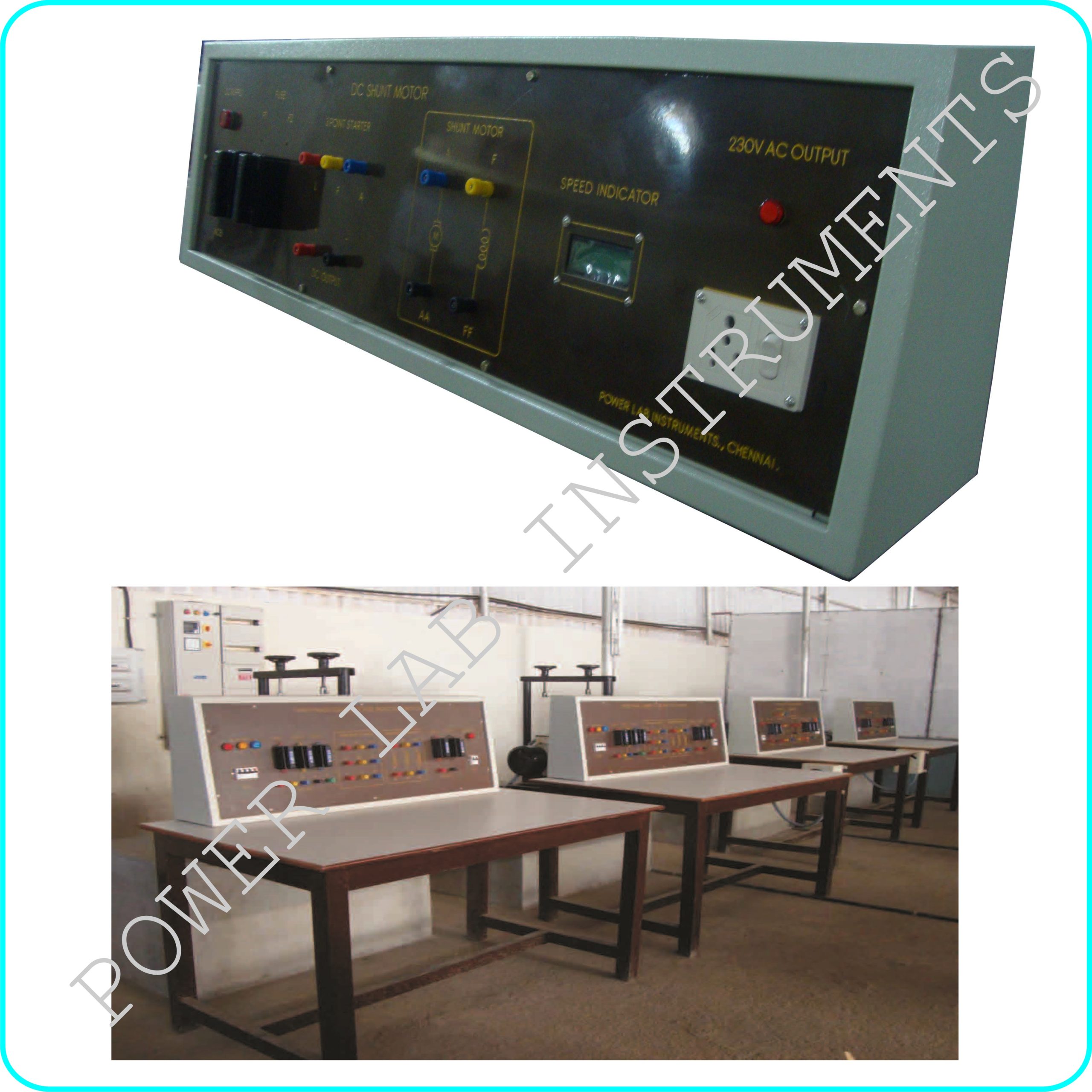

This control panel can be used for AC/DC Machines lab to perform the machine lab experiments. This panel consists of
- MS Panel
- Engraved Hylem sheet with components
- Powder Coated MS Panel with approx dimensions – 1 Feet (H) X 4Feet (L) X 0.5Feet (W) mm
- Provision to fix Engraved Hylem sheet on this panel
- 3/4MM thickness Hylem sheet Fixed with the below components & relevant ac/dc Machines related details are engraved in this Hylem sheet
-
- AC/DC Source indicator
- AC/DC MCB -32A or suitable rating
- Panel mounting Fuse holder-32A or suitable rating
- AC/DC Starter terminals ( starter will not be provided in this unit)
- Provision for Digital speed indicator for AC/DC Motor speed measurement
- Motors input terminals (32A Banana termination)
- 3 pin plug socket
-
- Note : Table should be provided by institutions
- Custom size also possible
